Containerized Heliox Transfer System – MAYA’AH

The SmartDives MAYA’AH Portable Heliox Compressor is a breakthrough solution engineered to make high-volume Heliox gas transfer faster, safer, and dramatically more efficient. Purpose-built inside a portable container, it brings the performance of a fixed gas-transfer installation into a fully mobile format, ready for immediate deployment onshore or offshore.

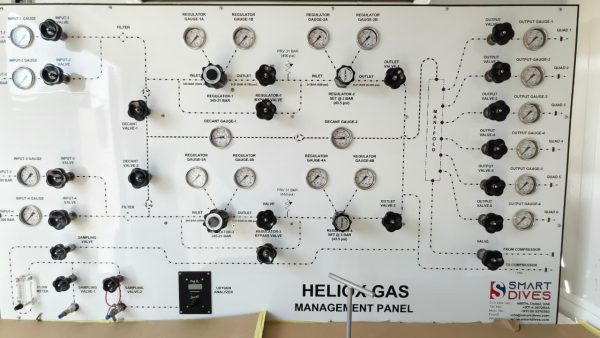

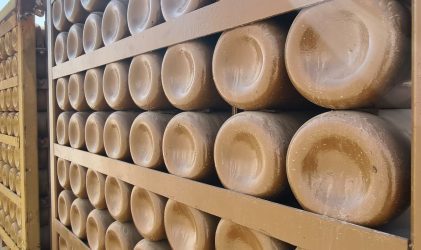

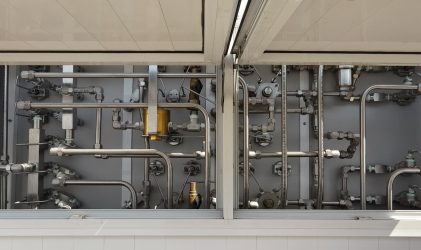

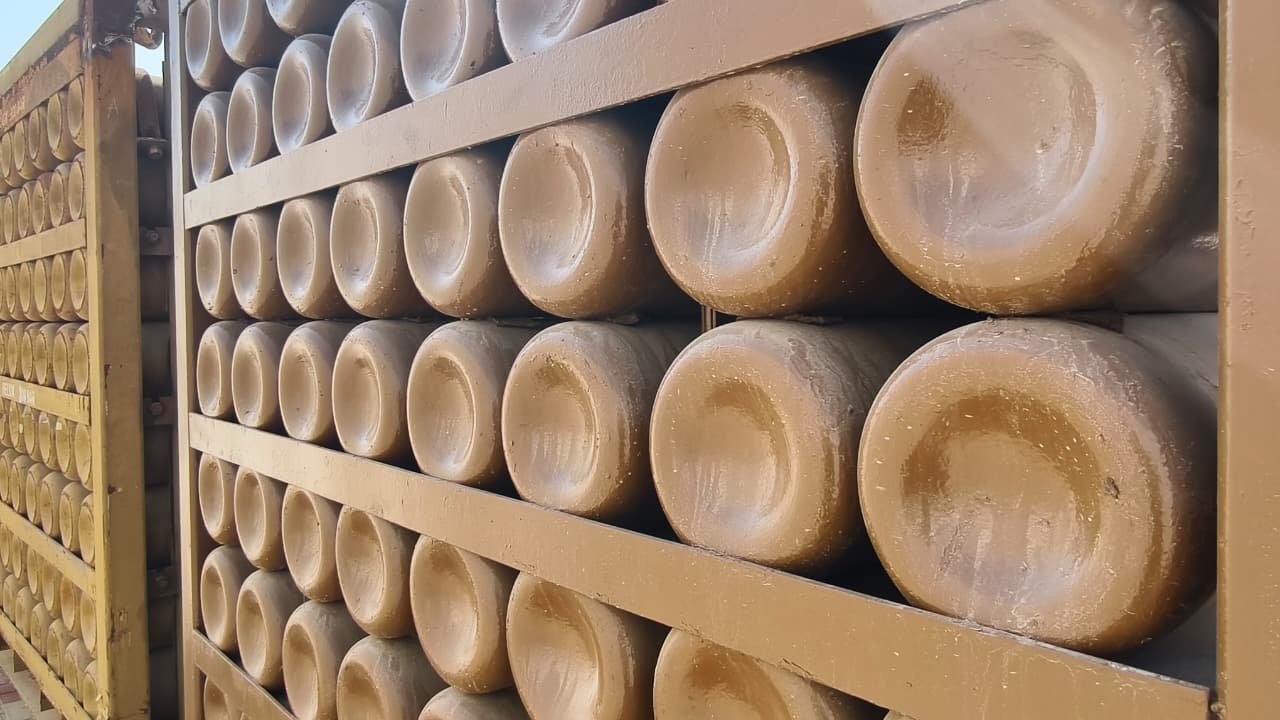

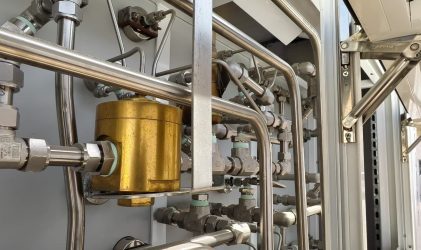

At its core, the system is powered by the Bauer GIB 26.10-132 high-pressure compressor, delivering an exceptional 400 m³/hr flow rate, enabling Quads that normally take 8–10 hours to be completed in as little as 2 hours. Paired with Tescom precision stage regulation, the system ensures stable, accurate pressure reduction and consistently smooth operation throughout 24-hour continuous use.

What makes this compressor truly unique is its efficiency: the integrated recovery loop and buffer vessel allow near-complete gas extraction, eliminating typical return losses and maximizing every cubic metre of Heliox purchased. The unit’s portability, certified container construction, and dual cooling capability (air + seawater) give operators unmatched flexibility, reliability, and cost savings across multi-site diving operations.

SmartDives designed the system with one goal, to redefine how Heliox is managed in the field with speed, safety, and total operational confidence.

Add to quote
SKU: SDAHTS001 Category: Brand:

Key Specifications

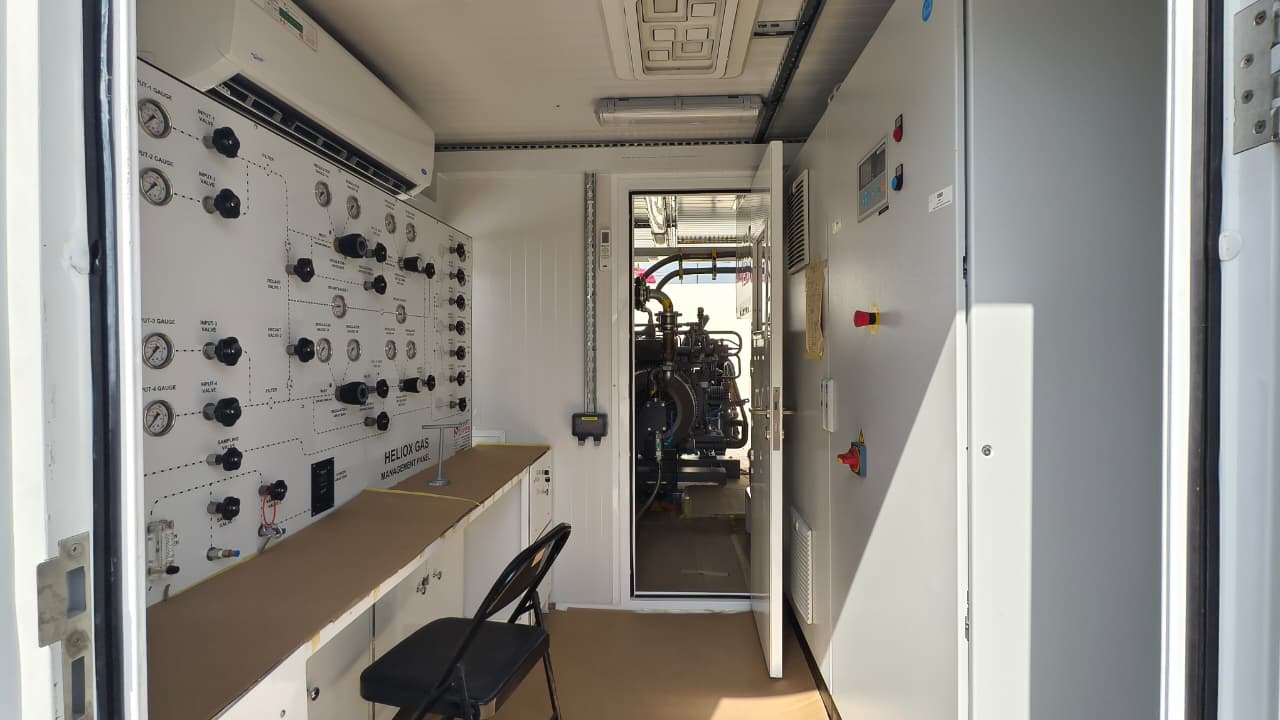

CONTAINER

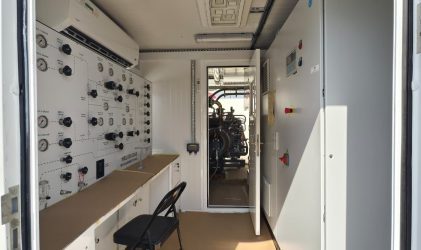

The system is housed in an offshore container certified to DNV 2.7-1 / BS EN 12079 / ISO 10855. It features a high-capacity Heliox transfer compressor designed for continuous 24-hour operation, achieving an exceptional transfer rate of 400 m³/hr (≈6,666 L/min) — performance unmatched by conventional systems.

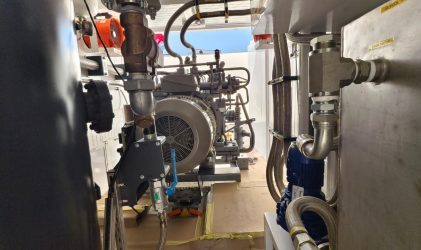

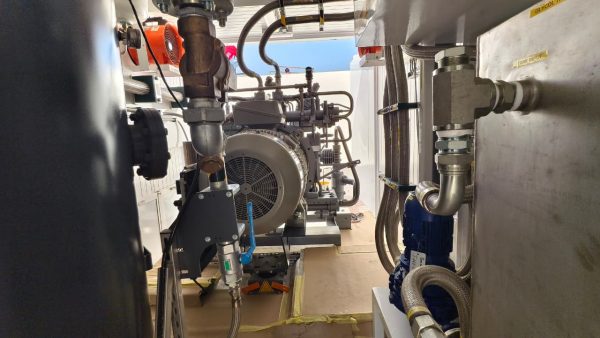

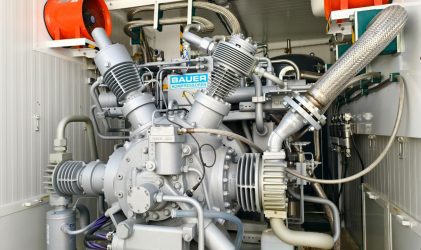

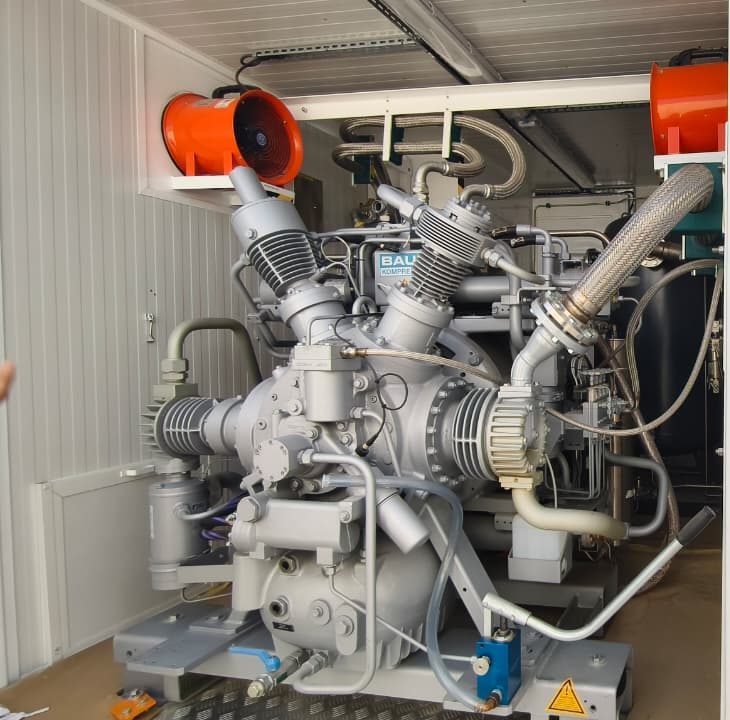

Compressor

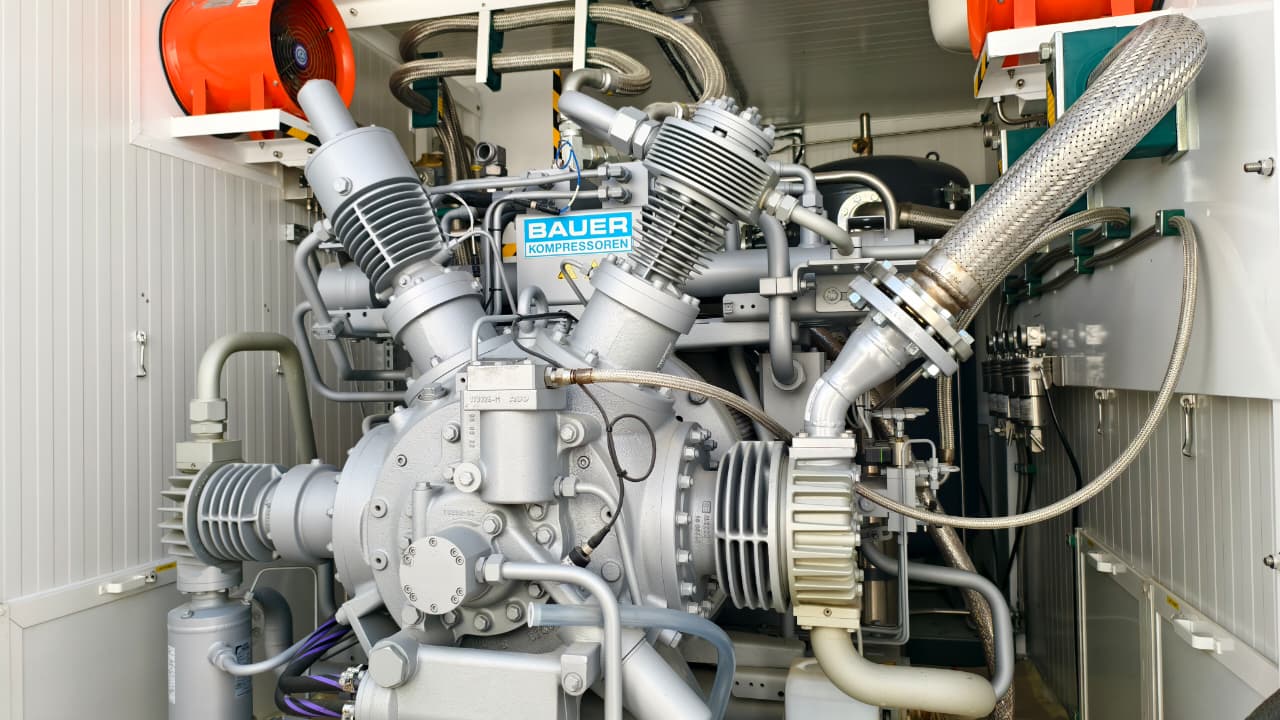

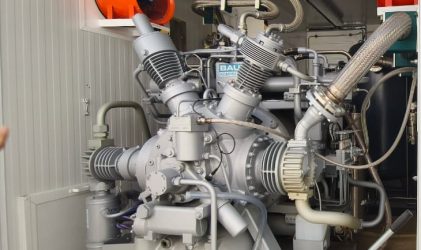

GIB 26.10 Series compressor systems are extremely low-maintenance with long service life, yet are significantly quieter than comparable air-cooled compressors. They are specifically designed for continuous industrial operation or heavy-duty applications. The total cost of ownership (TCO) is further reduced by their low oil consumption, long maintenance intervals and transparent maintenance rates. The dry sump lubrication system enables the compressors to be set up at angles of up to 30° in all directions.

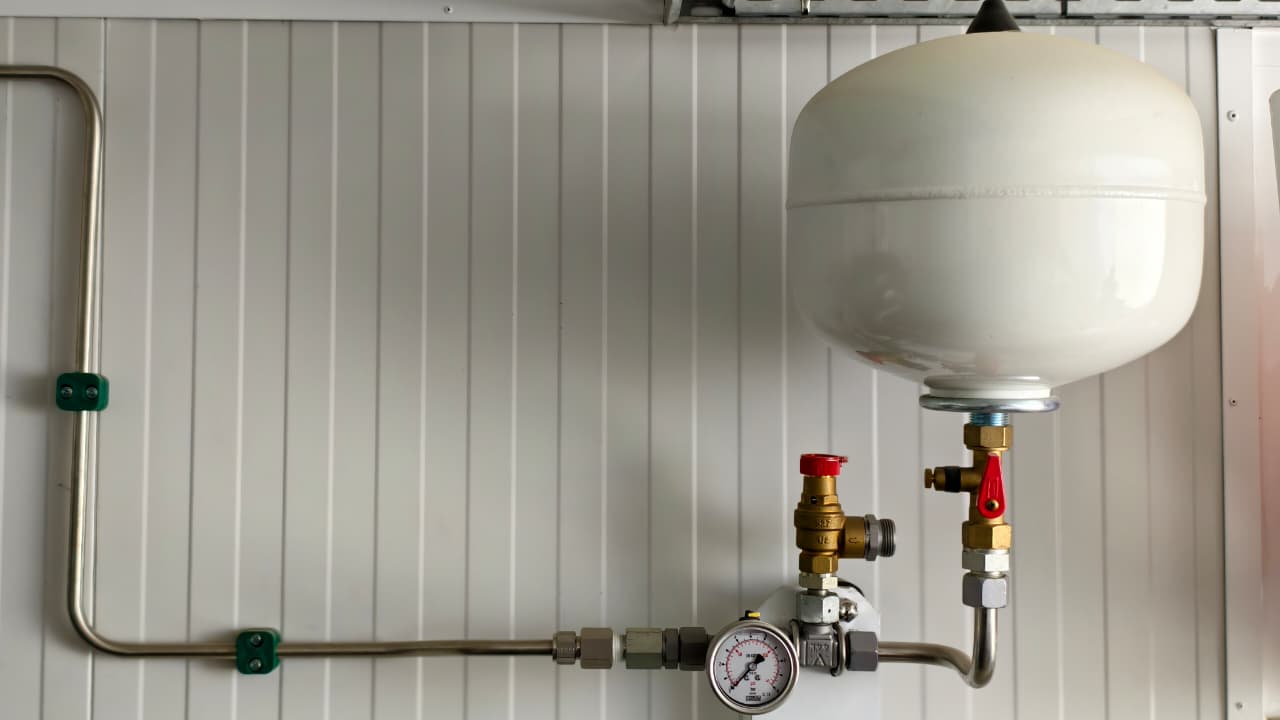

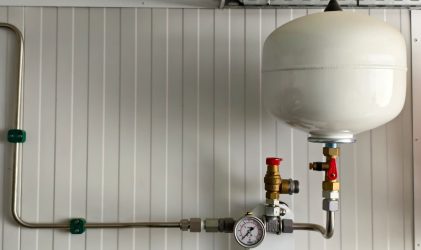

BUFFER VESSEL

Ensures a continuous gas flow to the compressor to maintain operation.

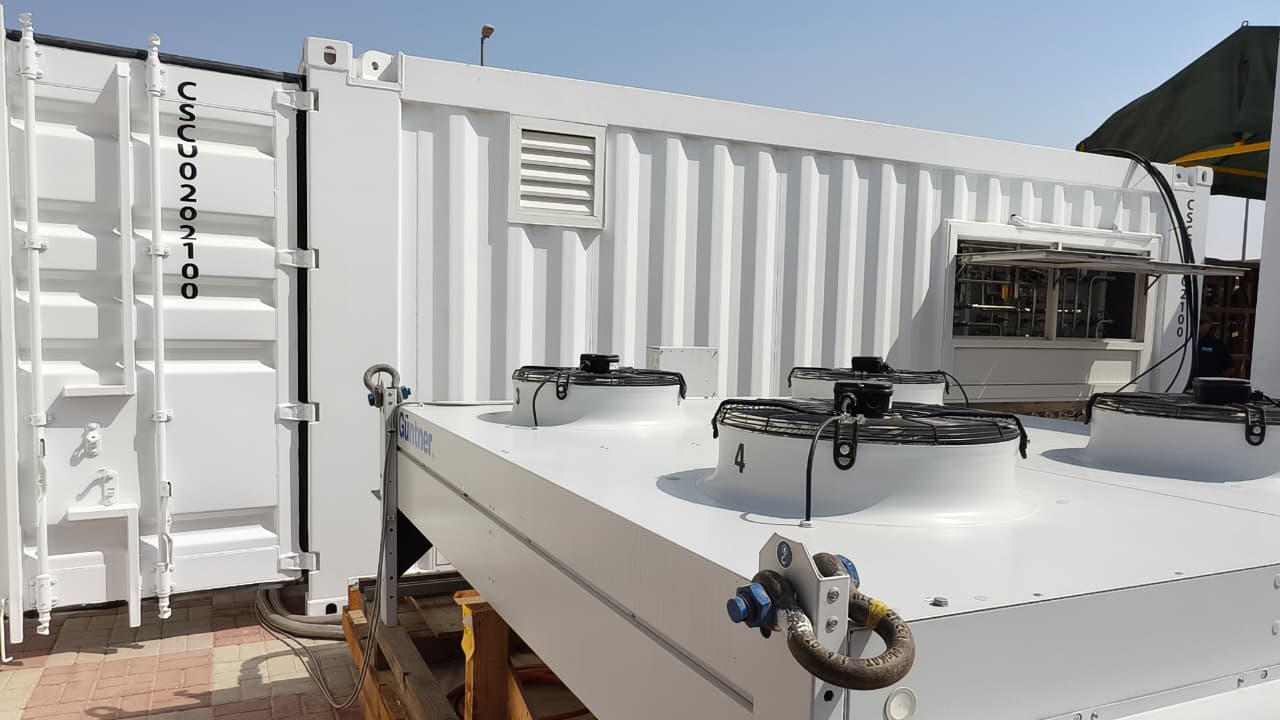

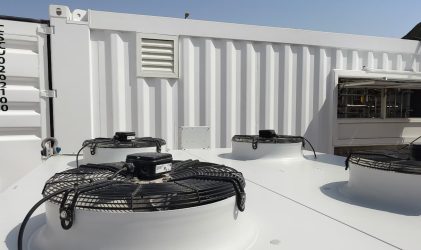

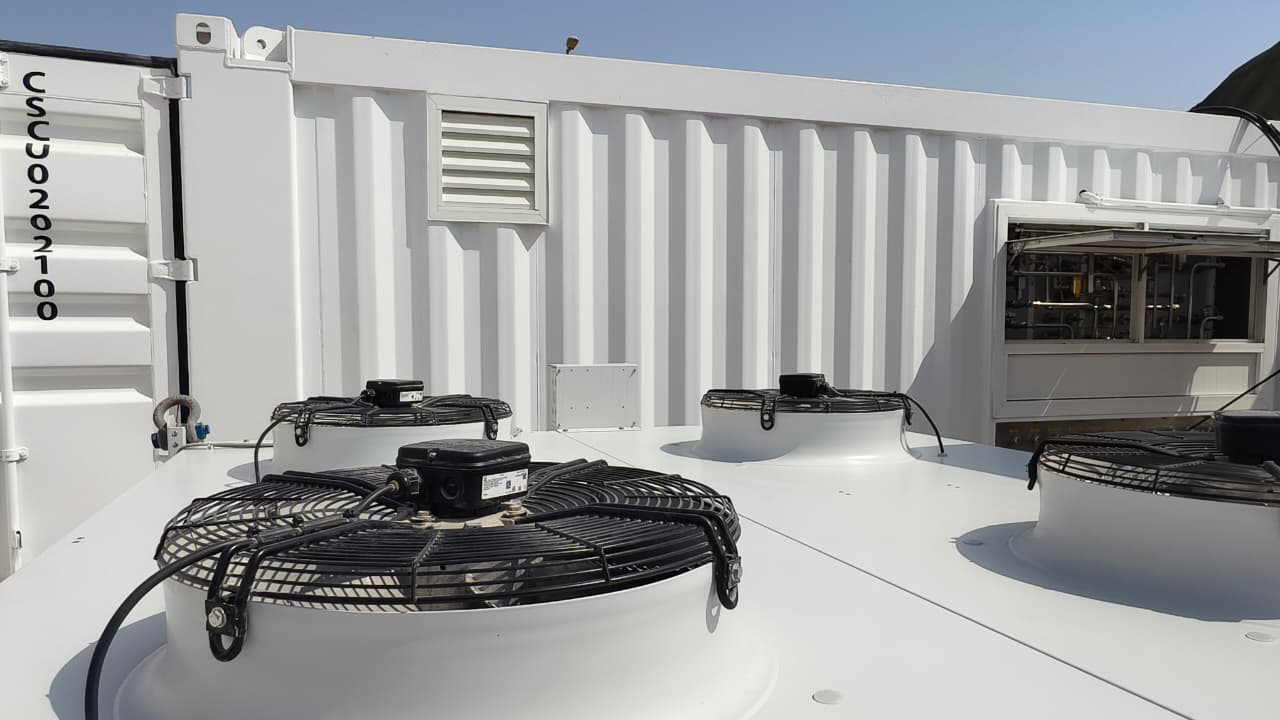

EXTERNAL COOLING / RADIATOR-SET / SEA WATER COOLING

Cooling Flexibility for every environment. The SmartDives Heliox Gas Transfer System features a dual-mode cooling design that ensures optimum compressor performance in any operating environment. Depending on the installation, the system can function in either seawater cooling or radiator cooling mode.

IN seawater cooling mode, heat from the closed glycol-water circuit is exchanged through an external seawater heat exchanger, making it ideal for offshore and marine operations. This setup delivers consistent cooling efficiency using the vessel’s available seawater flow.

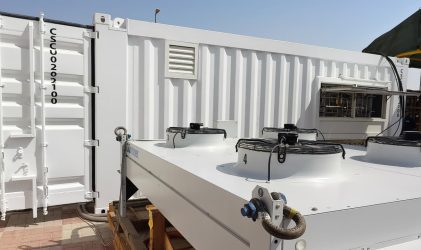

For onshore or standalone applications, the system seamlessly switches to radiator (air) cooling, where a built-in air-cooled radiator and fans maintain stable temperatures without external connections. With a simple selector valve, operators can switch between modes instantly, ensuring continuous operation, energy efficiency, and maximum uptime – wherever the system is deployed.

VARIABLE-FREQUENCY DRIVE

The Smartdives Heliox Container incorporates a VFD, an intelligent control devices that ensure efficient operation of the container’s electrics.
