Key Specifications
- Variants:
- ABS
- BASIC
- ATEX-rated
- Diver Capacity:
- 2 divers
- Maximum Operating Depth:
- 70 meters

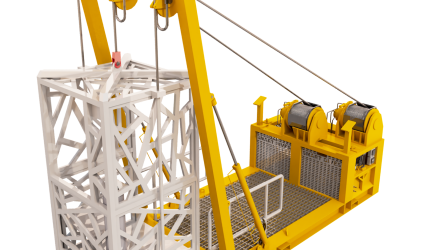

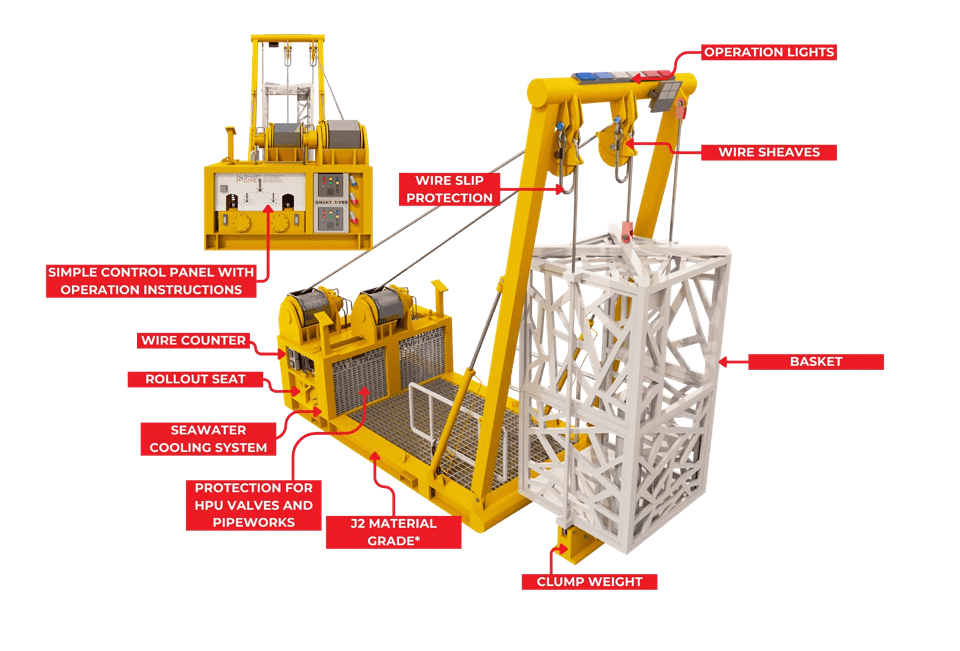

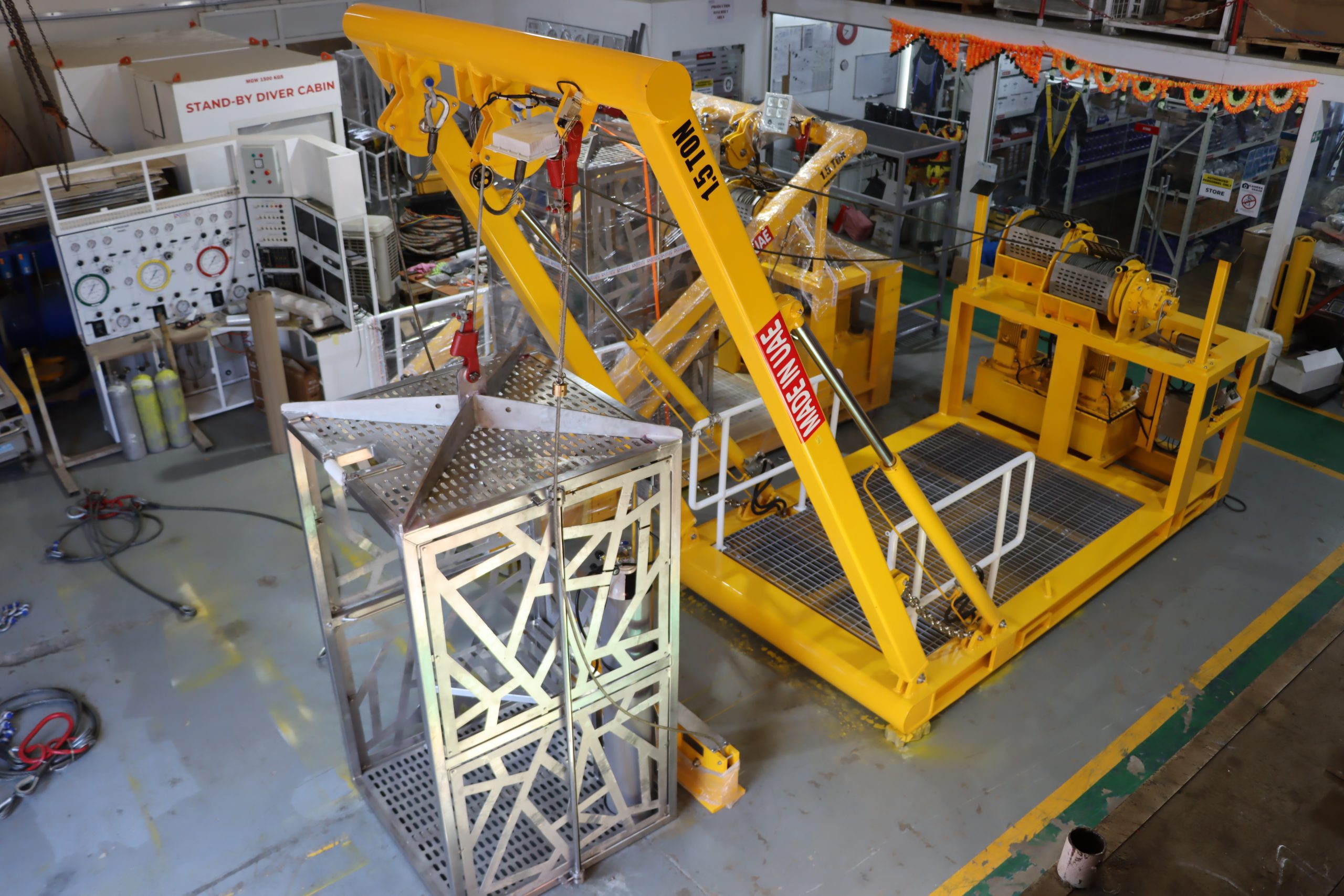

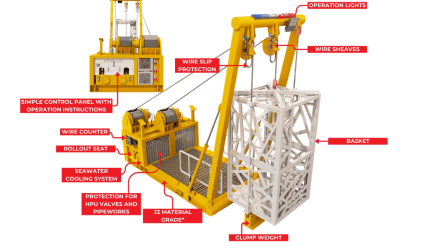

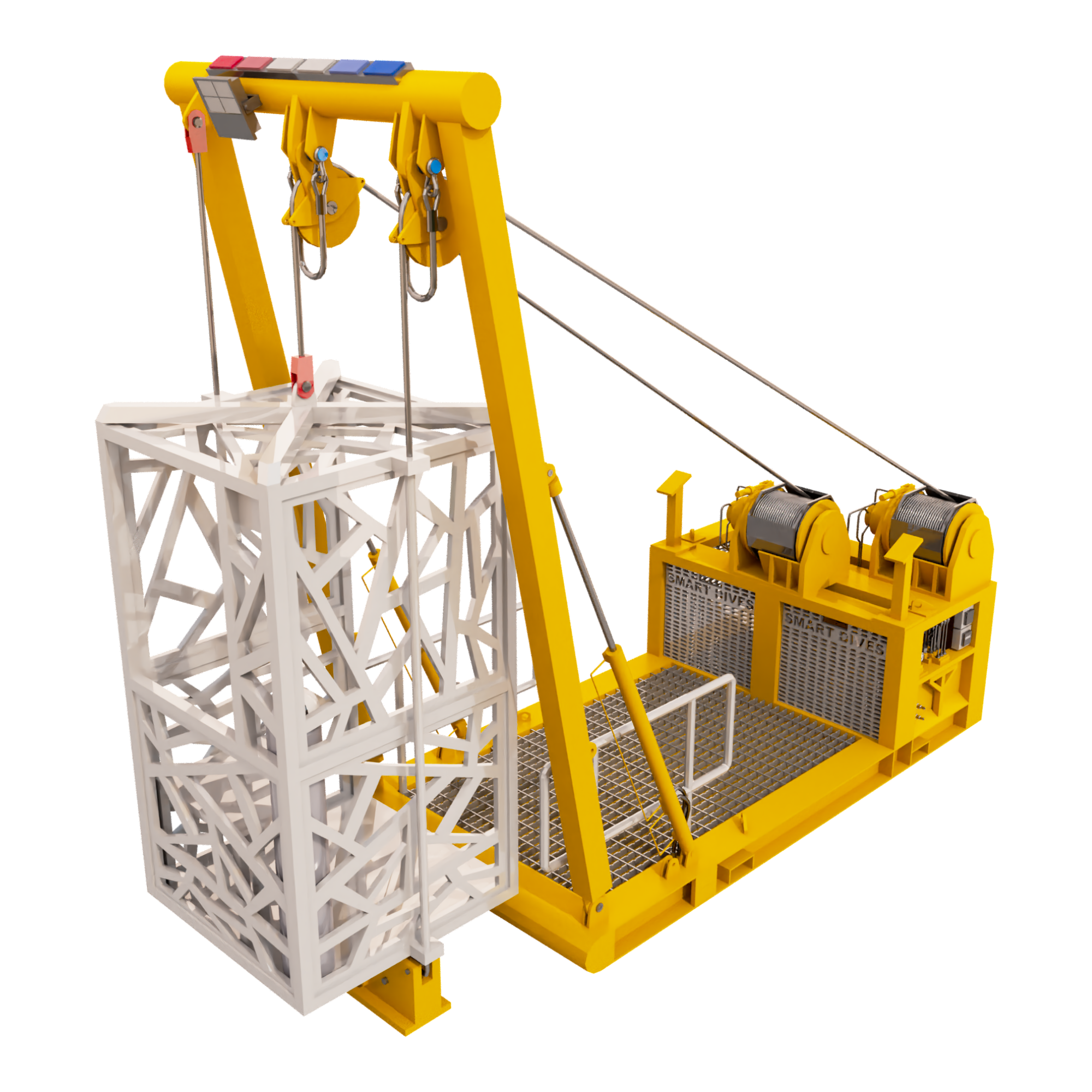

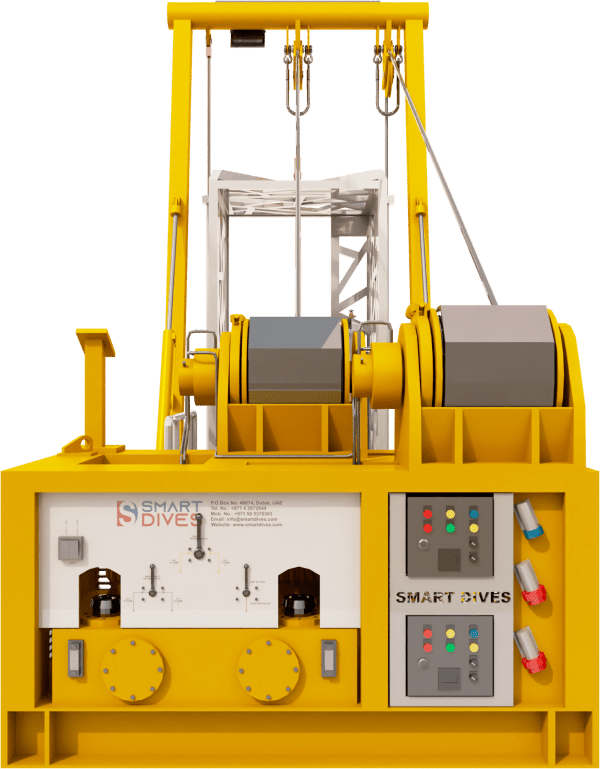

- Configuration:
- Base skid, A-frame, diver basket & guide weight
- LARS ASSEMBLY DIMENSION:
- Length: 3845 mm, Width: 2000 mm, Height: 4310 mm (A-Frame & Basket)
- Length: 3845 mm, Width: 2000 mm, Height: 2170 mm (IN STOWED POSITION)

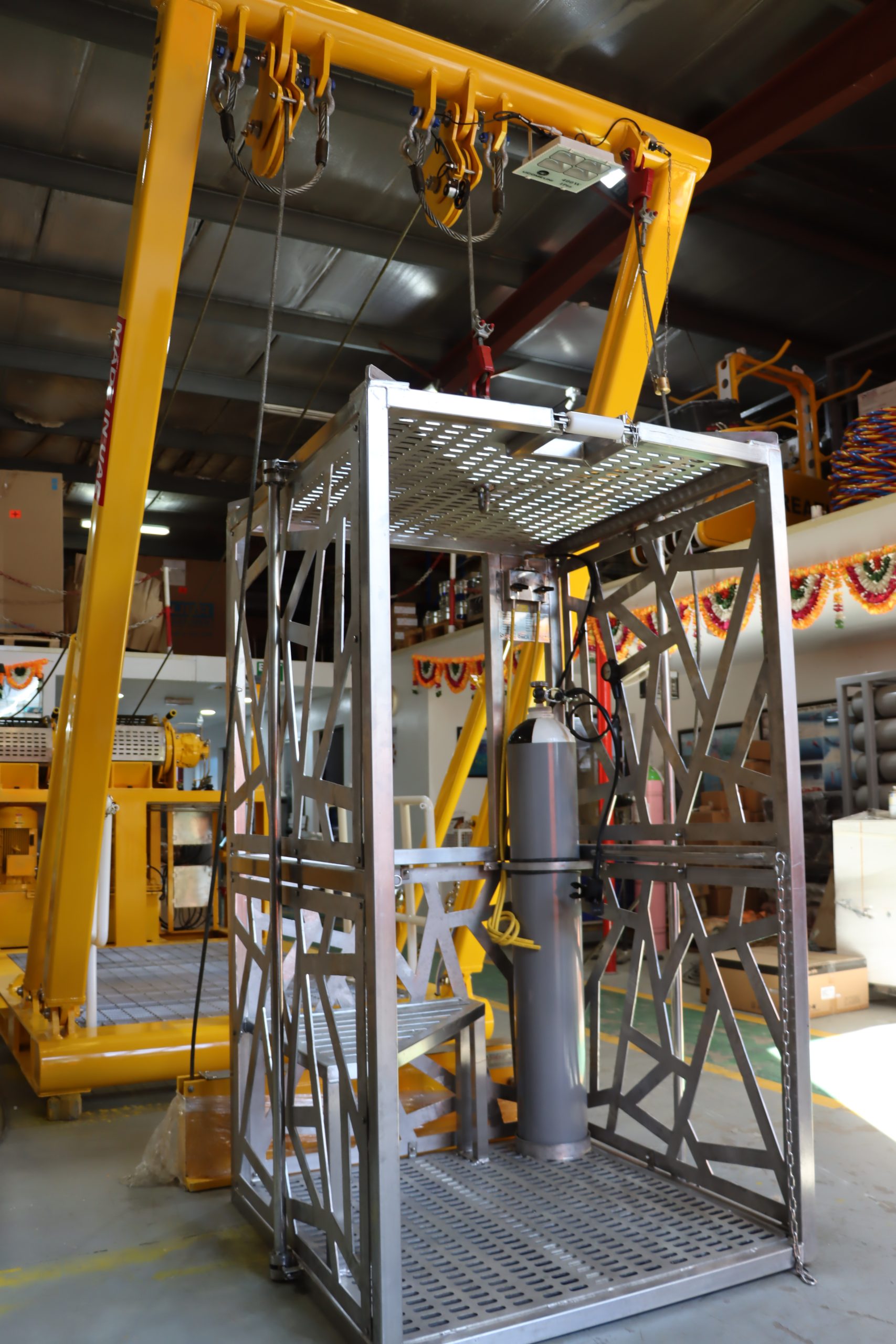

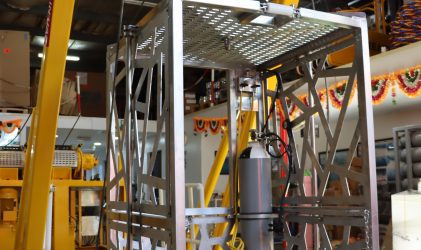

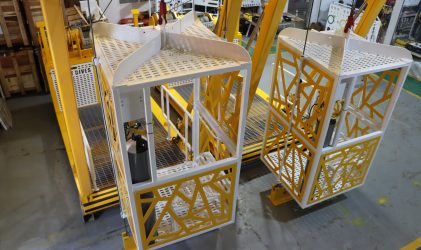

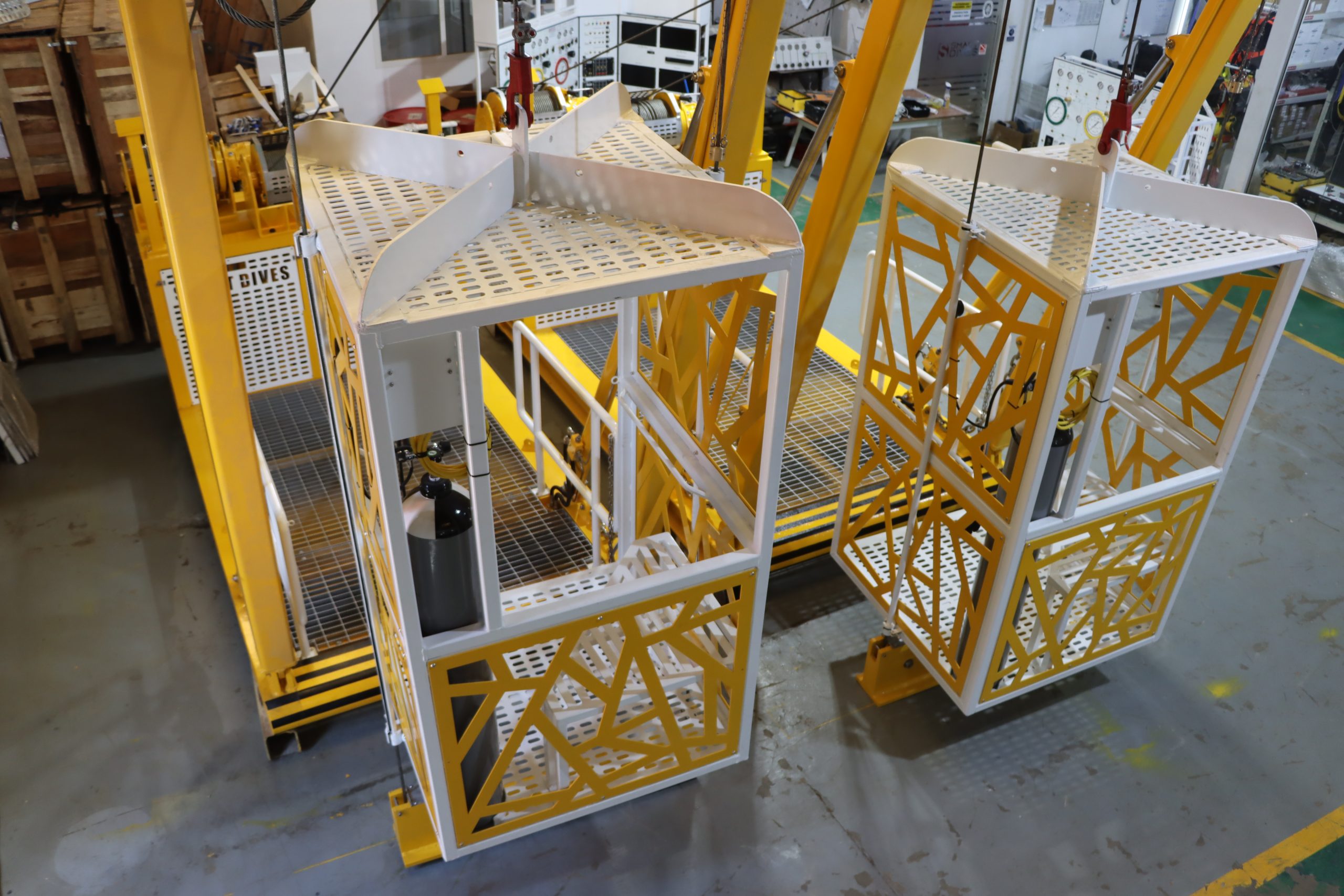

- LARS BASKET:
- Length: 1200, Width: 1200, Height: 2400
- MATERIAL: MILD STEEL (MS) OR STAINLESS STEEL (SS) as requested

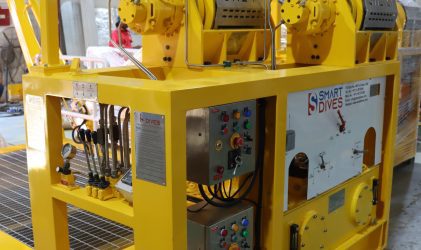

- Electric Motors:
- 2
- MAN RIDING WINCH:
- 2 (Main Winch and secondary Recovery Winch)
- DEPTH CAPABILITY:
- 70 meters
- BASKET/CAGE CYLINDER:
- 1×50 Liter @ 200 Bar
(Steel or carbotainer)
Compliance & Certification
The Diver Launch And Recovery System(LARS) complies with CE and IMCA D023 – Diving Equipment
Systems Inspection Guidance Note (DESIGN) for surface-orientated (air) diving systems. Available ABS
Classed or with ATEX-rated configuration, depending on project requirements.
