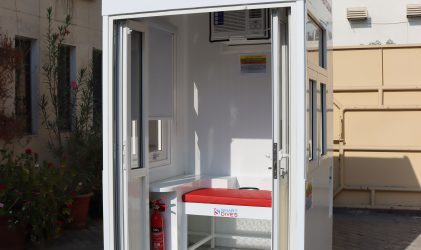

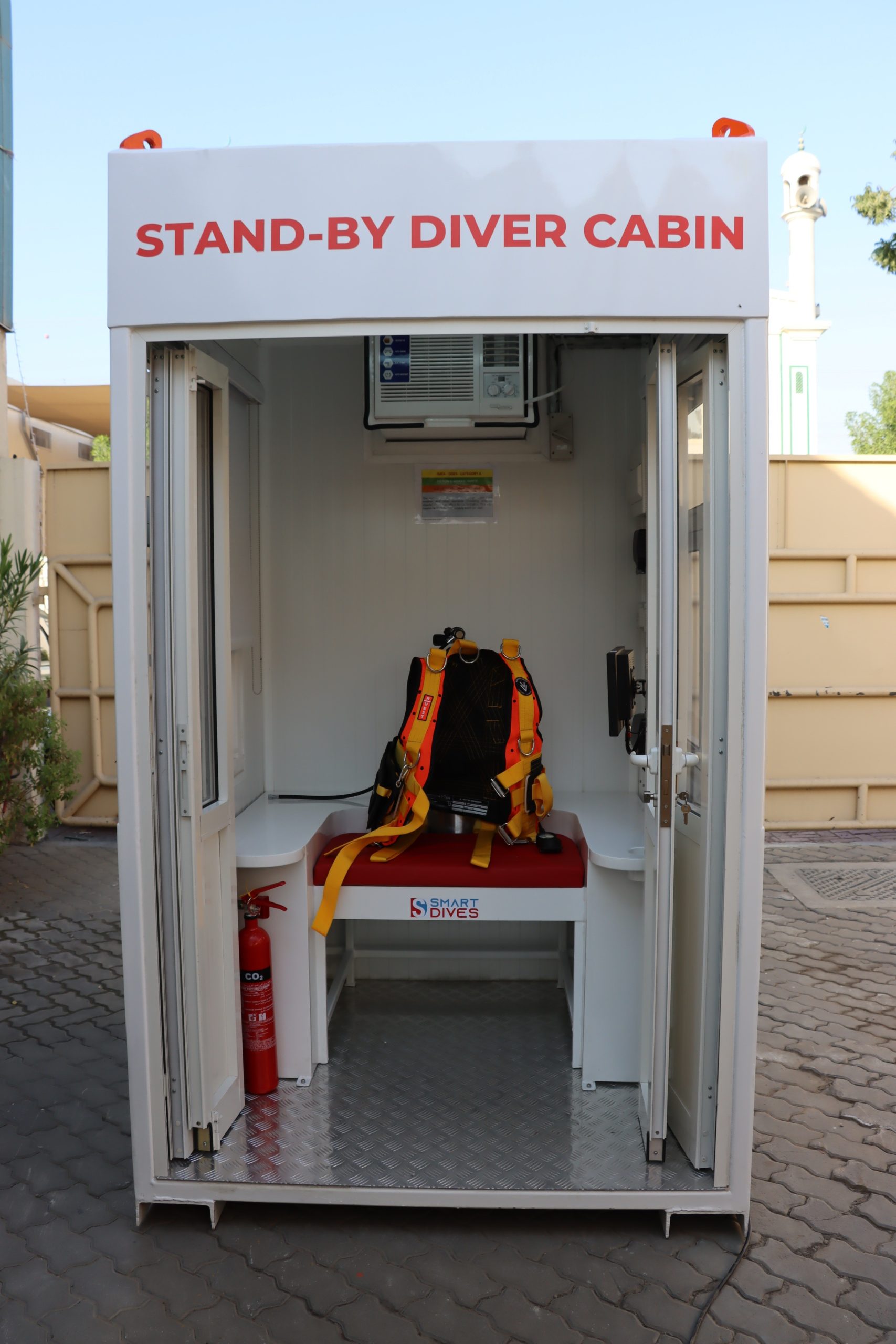

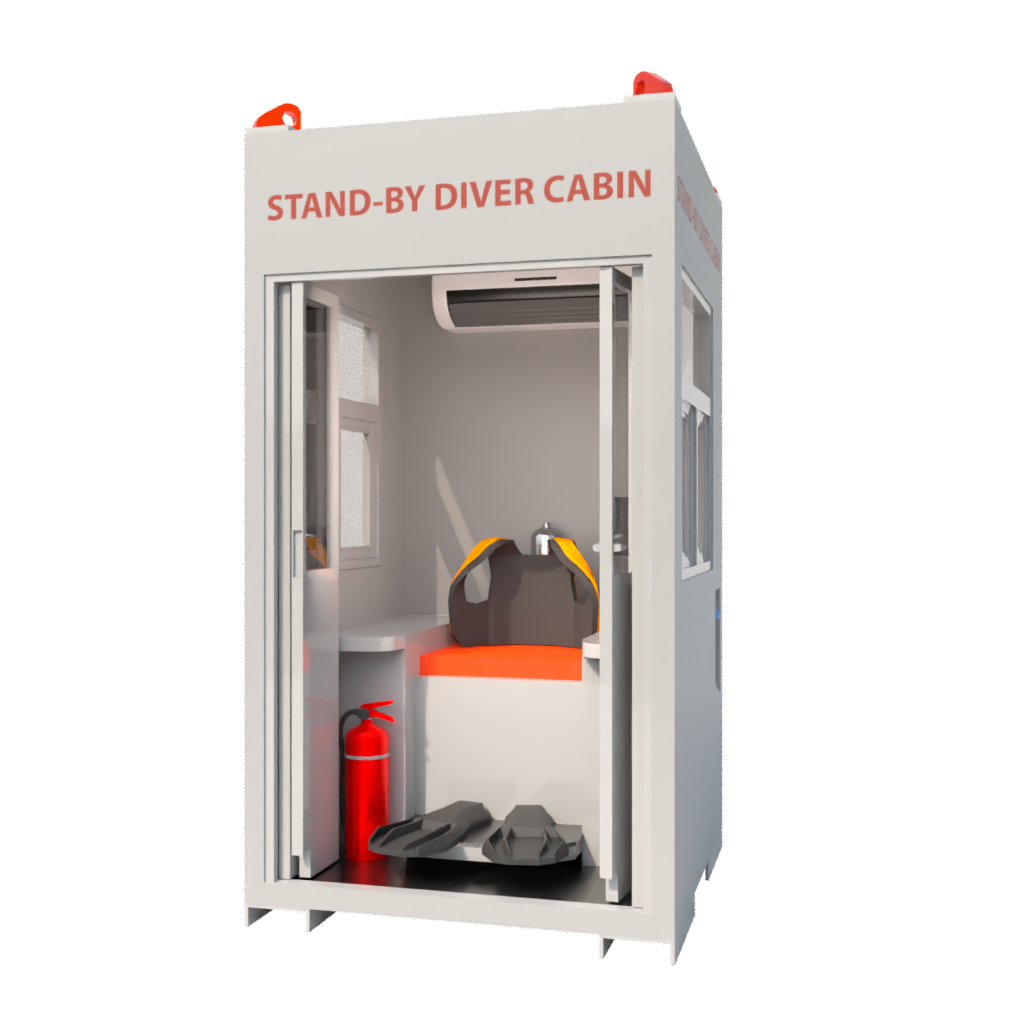

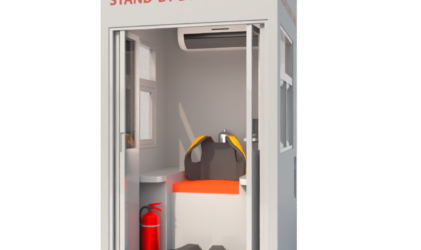

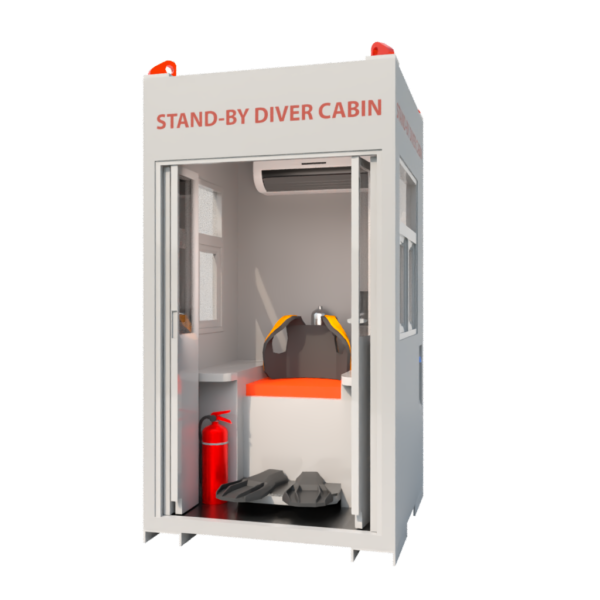

Portable Standby Diver Cabin (Single Occupant)

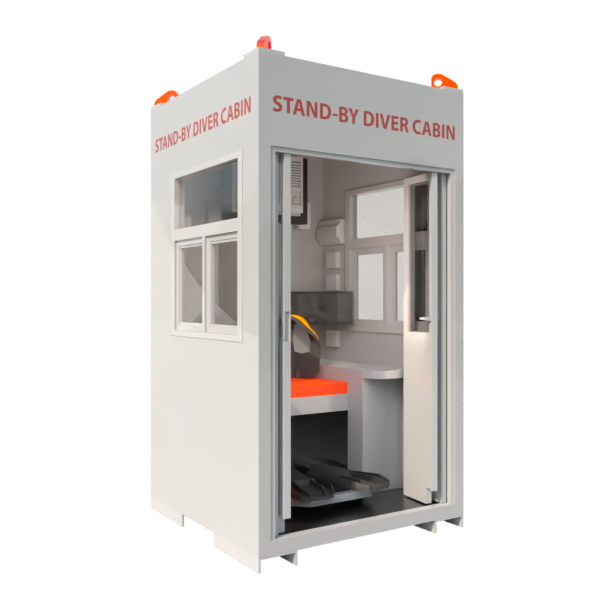

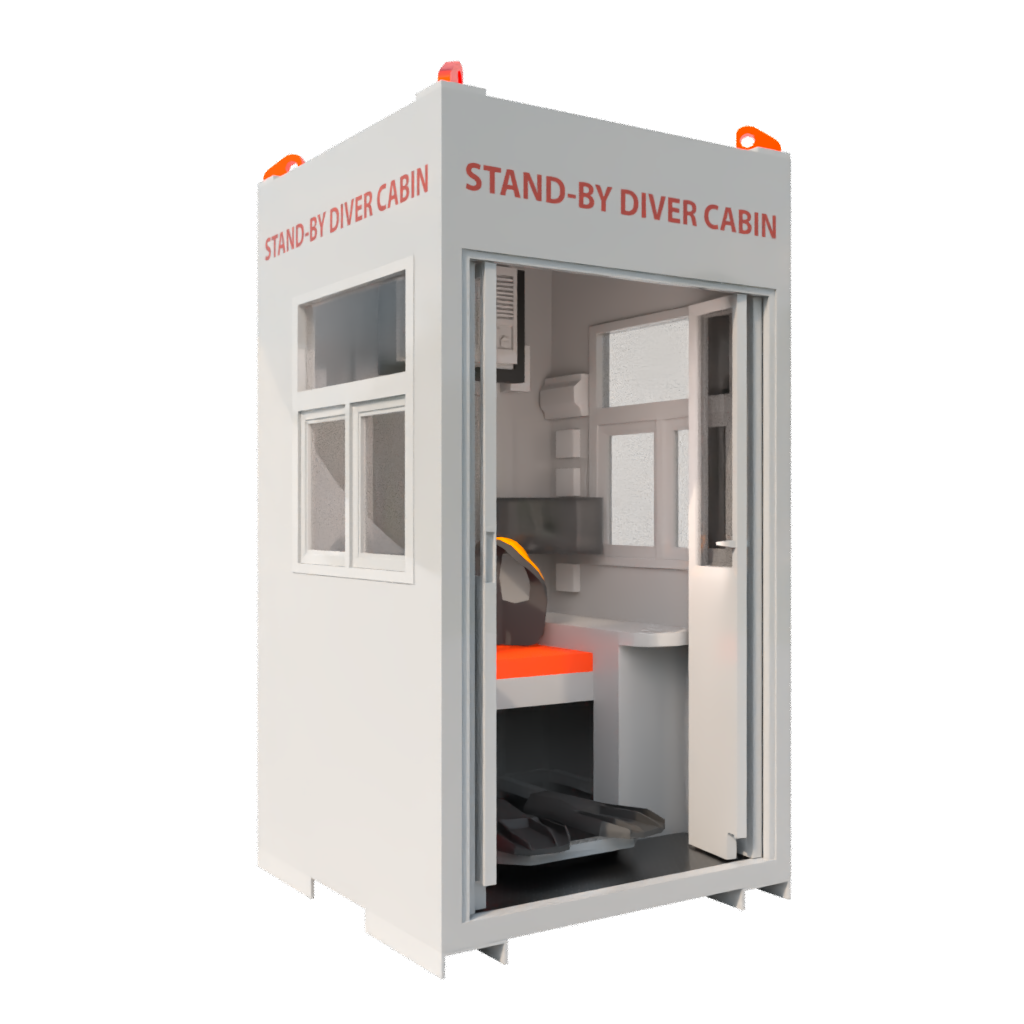

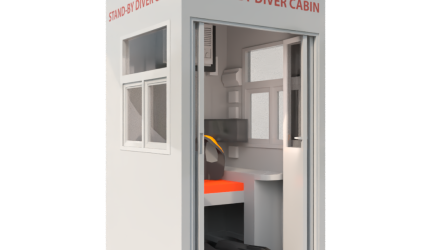

The SmartDives Stand-By Diver Cabin is a compact, purpose-built enclosure designed to keep the standby diver comfortable, alert, and fully mission-ready throughout the dive operation. Built with a strong, insulated structure and fitted with air-conditioning for climate control, the cabin creates a controlled environment that allows the diver to remain geared up, seated, and prepared for immediate deployment.

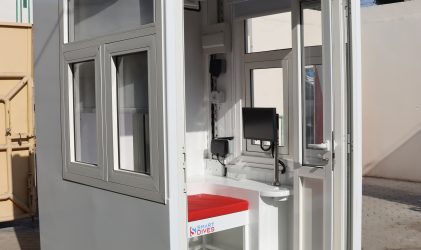

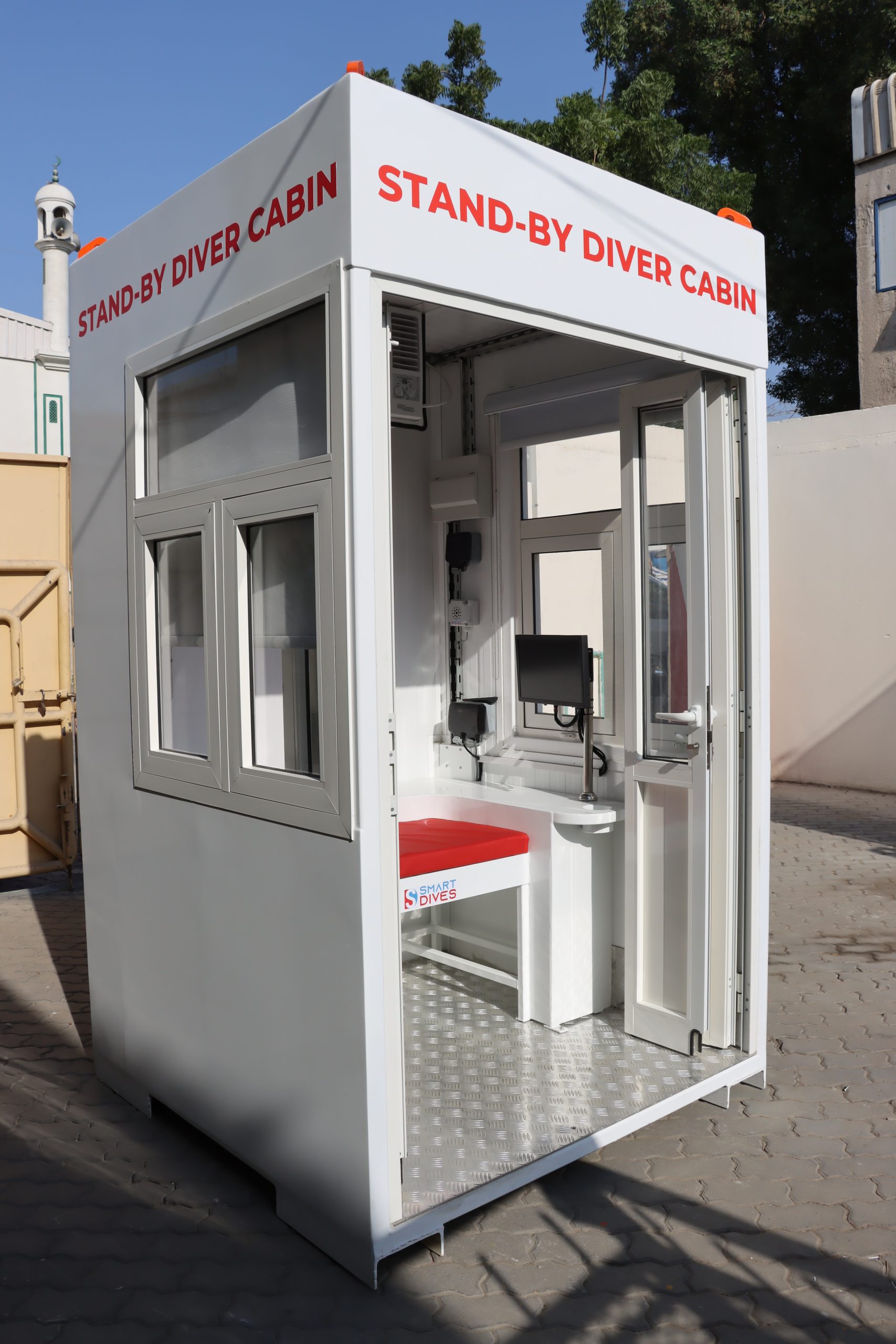

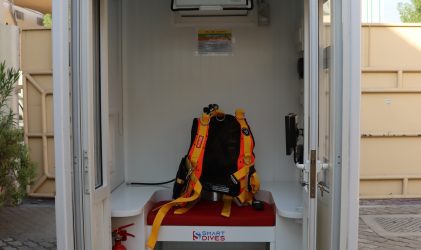

The cabin features an ergonomically designed seat, direct hardwired communication to the Dive Mission Control Center, and a 15.6-inch TFT LED screen that provides live audio and video feed of the working diver. This ensures the standby diver stays fully aware of dive progress and can respond instantly when needed.

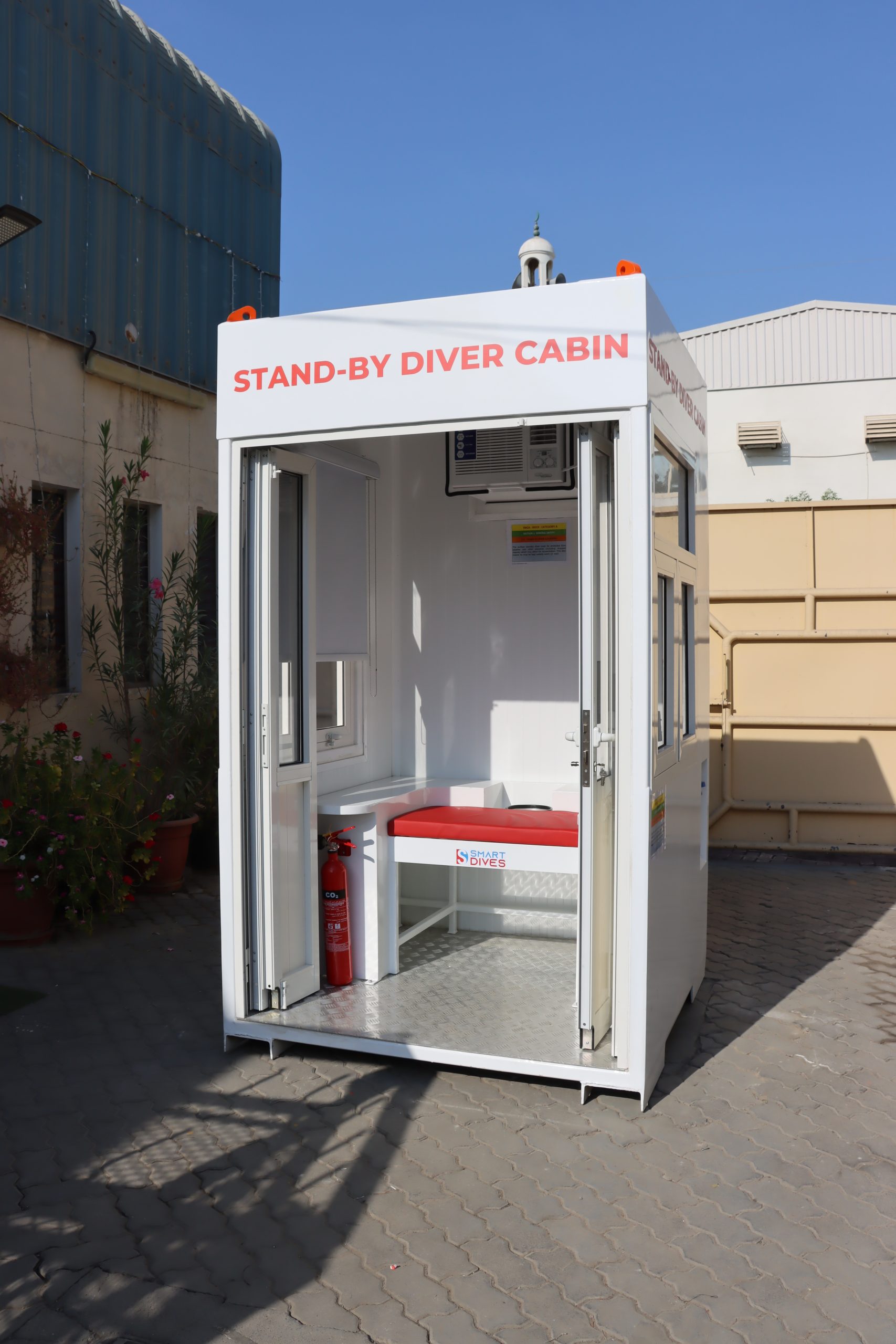

With roller blinds for privacy, internal lighting, multiple sockets, a fire extinguisher, and safe access through a wide entry door, the Stand-By Diver Cabin is engineered for practicality, comfort, and operational readiness in real-world offshore and onshore environments.

Add to quote
SKU: SDSDC001 Category: Brand:

Key Specifications

Designed for Standby Readiness

  • Single-occupant cabin designed for one standby diver.
  • Provides a protected and comfortable waiting station during diving operations.
  • Suitable for vessel, quayside, yard, and offshore project site deployment.

Live Communication

  • Hardwired communication link between the standby diver, diving supervisor, and dive control station.
  • Allows the standby diver to remain connected with the dive team throughout the operation.
  • Supports direct communication and operational coordination during the dive.

Real-Time Monitoring

  • Integrated 15.6” LED display for live audio/video monitoring.
  • Allows the standby diver to view the working diver’s activity in real time.
  • Improves situational awareness and keeps the standby diver fully informed during the operation.

Comfort & Climate Control

  • Integrated air-conditioning unit with heating and cooling capability.
  • Designed to improve comfort during long standby periods.

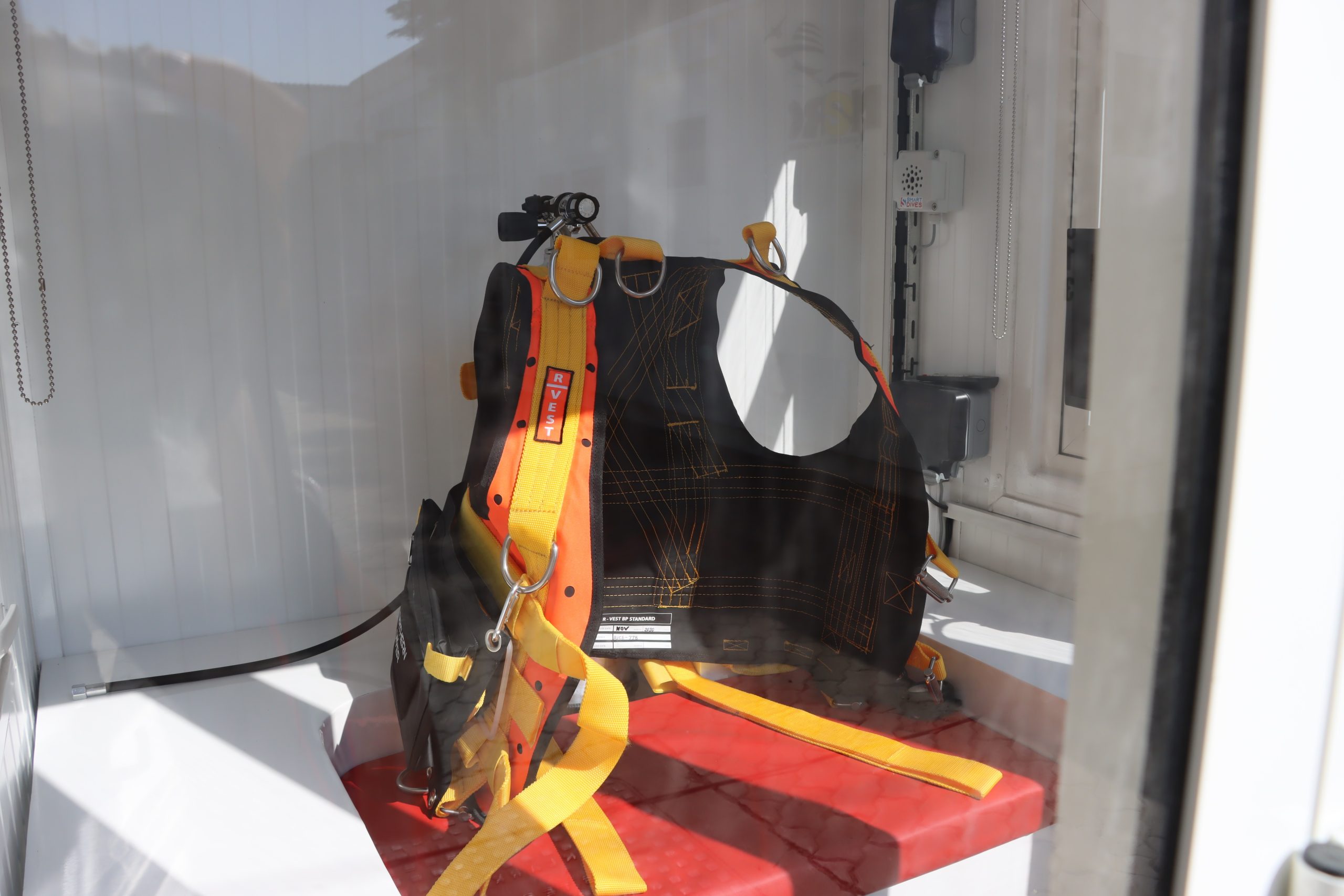

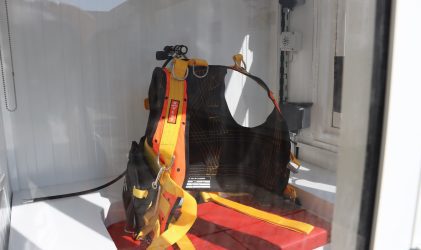

  • Interior fitted with ergonomic seat, lighting, and roller blinds.

Power, Safety & Handling

  • Operates on 220V / 50–60 Hz mains supply.
  • Supplied with 1 fire extinguisher for basic fire safety provision.
  • Provided with 4 lifting pad eyes for safe handling and relocation.

Dimensions & Weight

  • Approximate dimensions: 270 × 150 × 150 cm
  • Approximate weight: 1,000 kg
