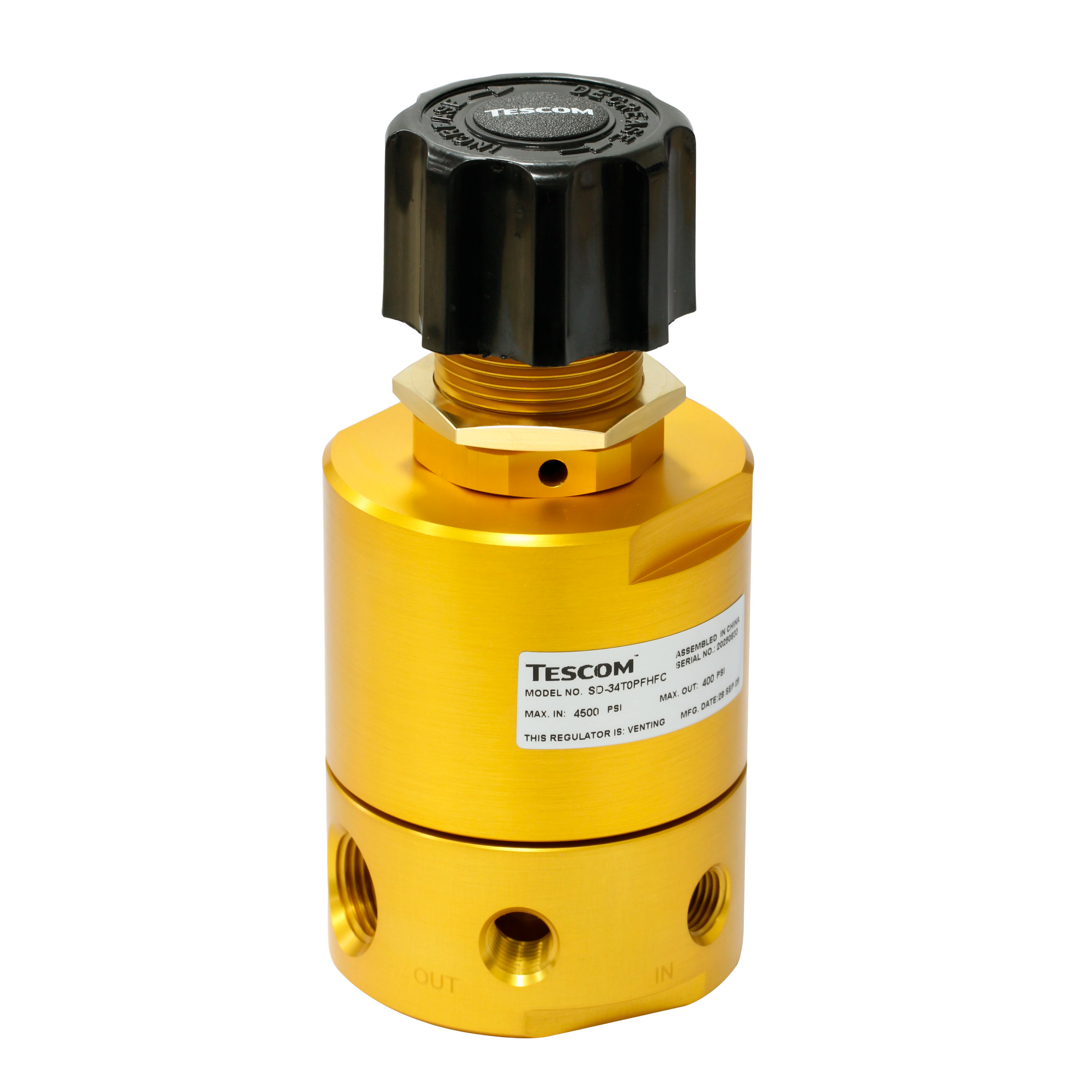

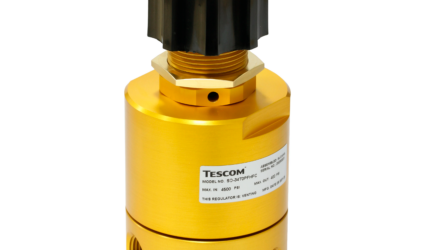

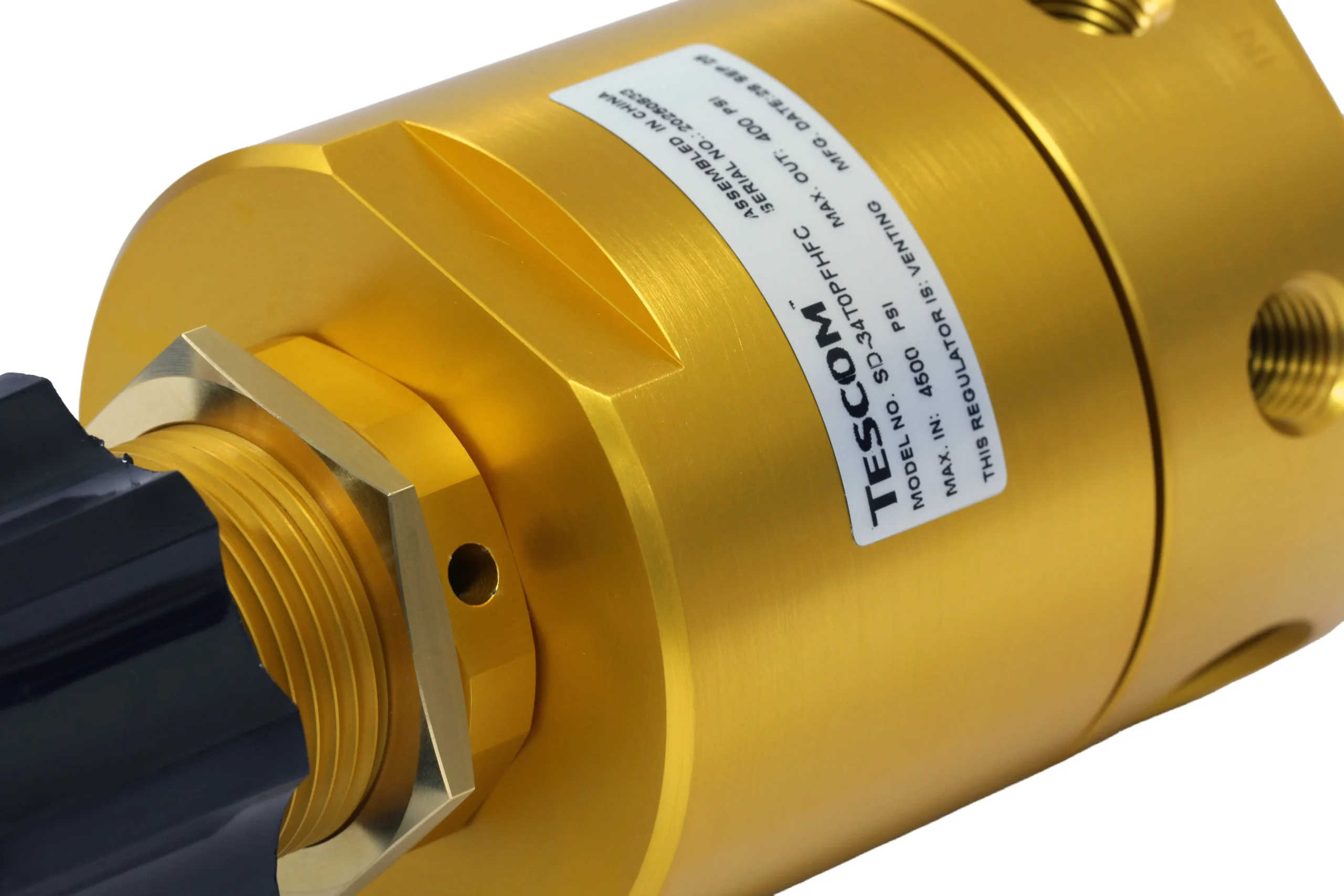

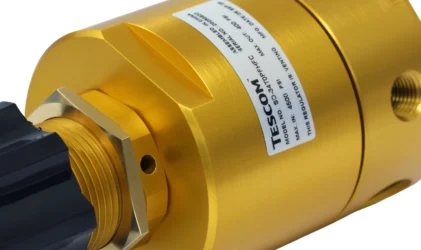

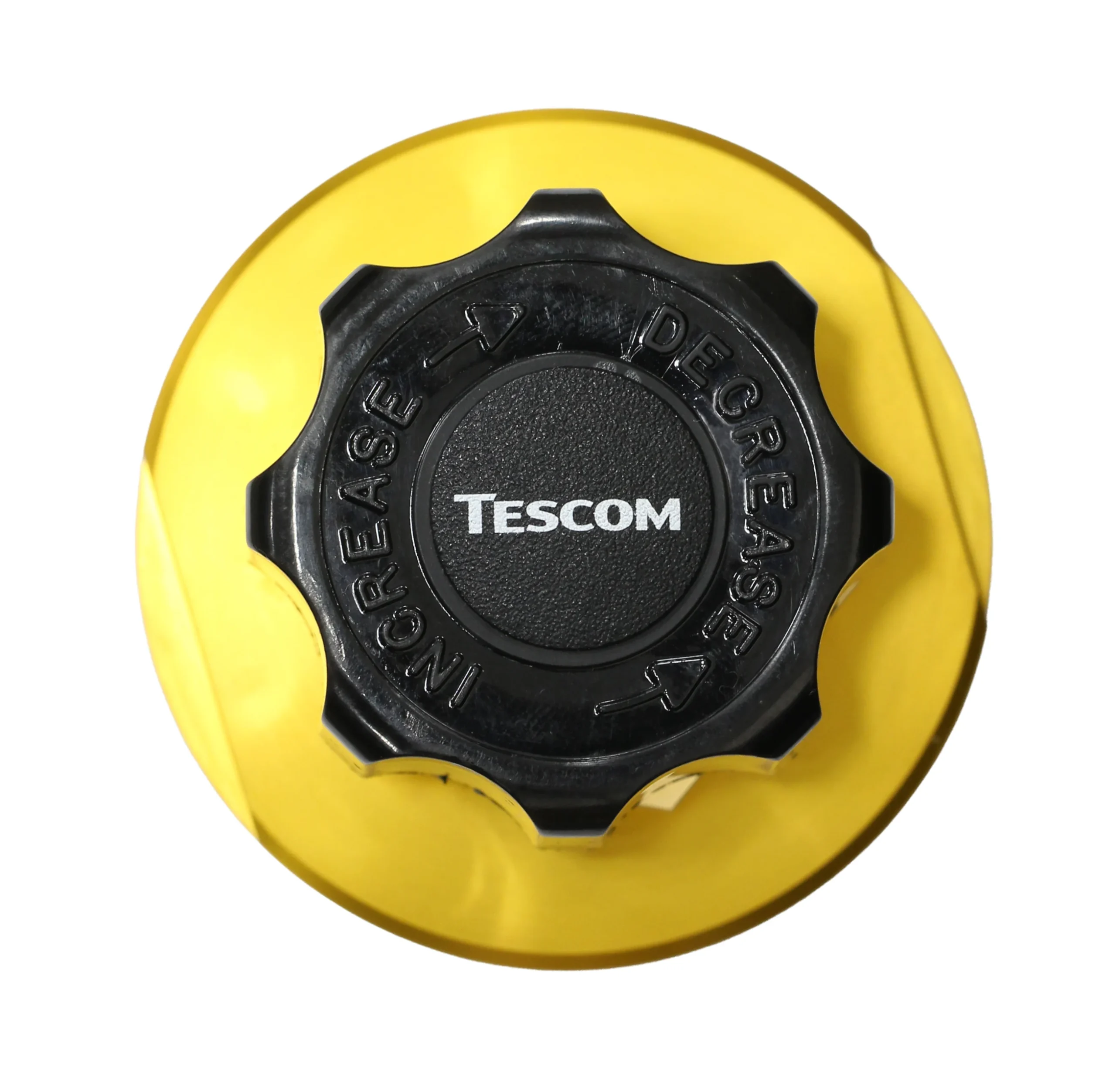

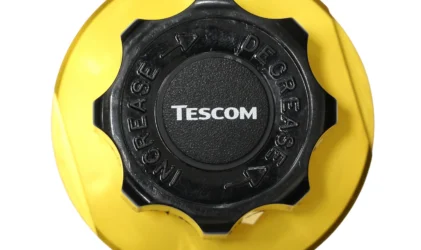

TESCOM™ Series SD-X Short Diving Pressure Regulator

Engineered specifically for the commercial diving industry, the SD-X series pressure regulator ensures a consistent, breathable air supply even as surface pressure drops. Its advanced sealing technology minimizes leaks, maintaining stable outlet pressure and preventing dangerous fluctuations. This reliability translates directly into enhanced diver safety, reducing the risk of equipment failure during critical operations. By efficiently utilizing remaining air, the regulator extends the diver’s operational window, allowing longer, safer dives. Its performance under pressure makes it an essential tool for demanding underwater environments. Trust in a system designed to keep divers safe, focused, and productive.

Features

  • Consistent air supply
  • Enhanced safety; built to withstand the most demanding environments
  • Increased operational window; optimal air pressure control
  • Portfolio offering robustness
  • Compact regulator design that simplifies system integration
Category: Brand:

Key Specifications

Nominal Inlet Pressure 4,500 psig / 300 bar
Max Outlet Pressure 400 psig / 27 bar
Body Material Anodized Aluminum, Brass
Seat Material PCTFE
O-Rings Material Buna, Viton
Filter Material Bronze
Filter Size 10 um
Ports Size & Type 1/4″ NPT(F), 1/2″ NPT(F)
Flow Capacity Cv = 0.8
Load Type Spring

Available downloads for this product:
