Key Specifications

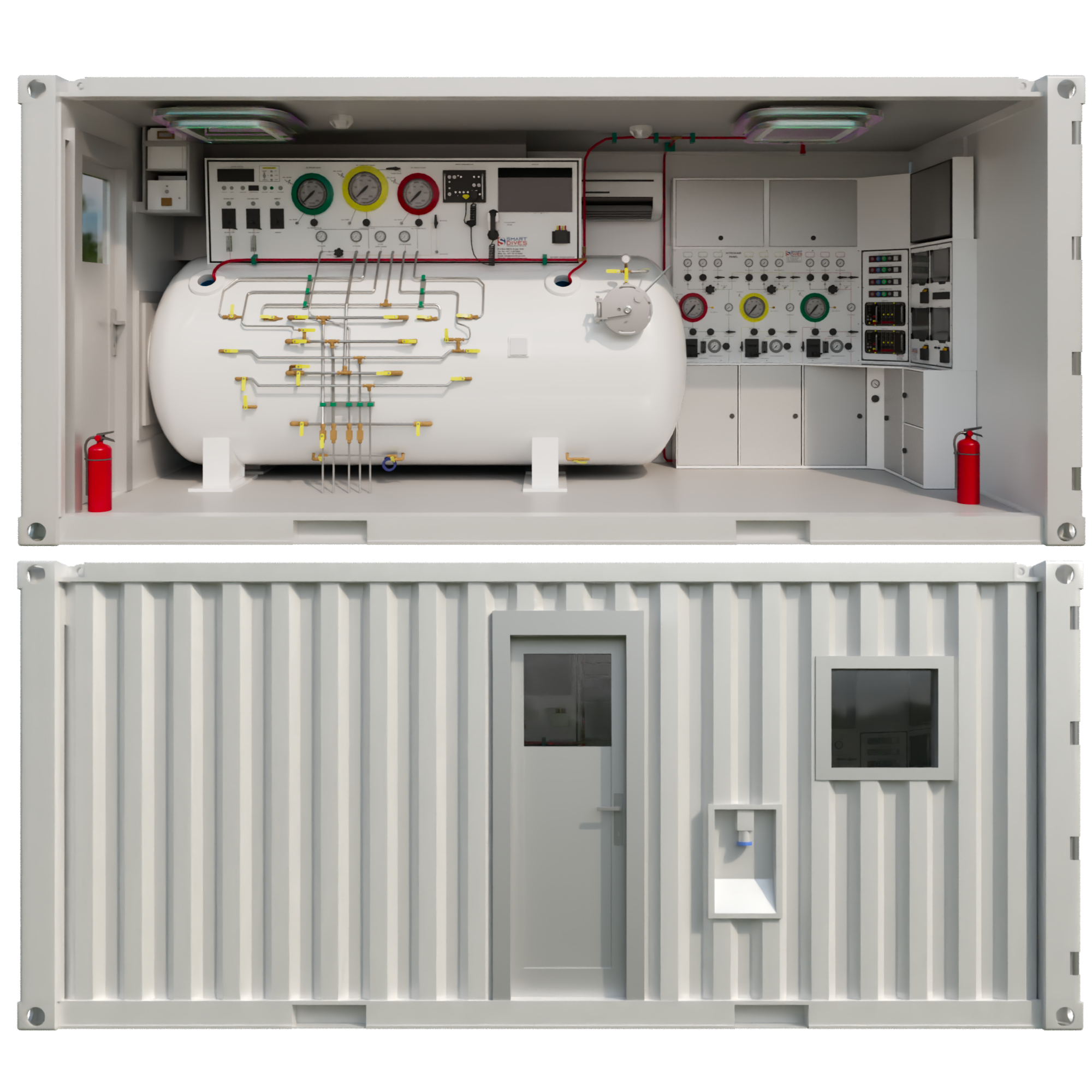

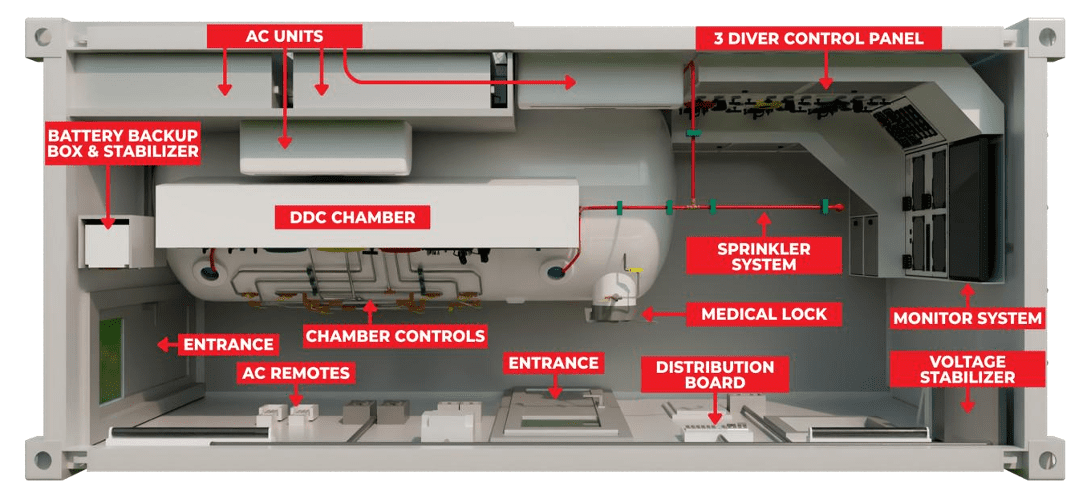

Container
- Container Variants:
- 20 FT DNV Offshore Container (Lifting Sling included) (ABS, PREMIUM DNV)
- 20 FT Standard ISO Container C/W DNV Type Lifting Padeye (PREMIUM ISO, BASIC)
- Enhanced interior finishing and insulation
- Designed for long-term inshore and offshore project use
- 2 × Carrier air-conditioning units with heating and cooling capability
- Redundant climate control arrangement suitable for 50 Hz / 60 Hz power supply
- Three-colour LED lighting with standard LED task lighting
Diver Decompression Chamber
- ASME U-Stamped pressure vessel
- Certified to ASME Section VIII Division 1 and PVHO-1
- PED certified and carrying applicable CE marking
- TESCOM pressure regulators
- Swagelok valves, fittings and tubing components
- Upgraded life-support components for extended operational service
- Large-format 8.5” depth and pneumo gauges with dual mirror scale in MSW / FSW

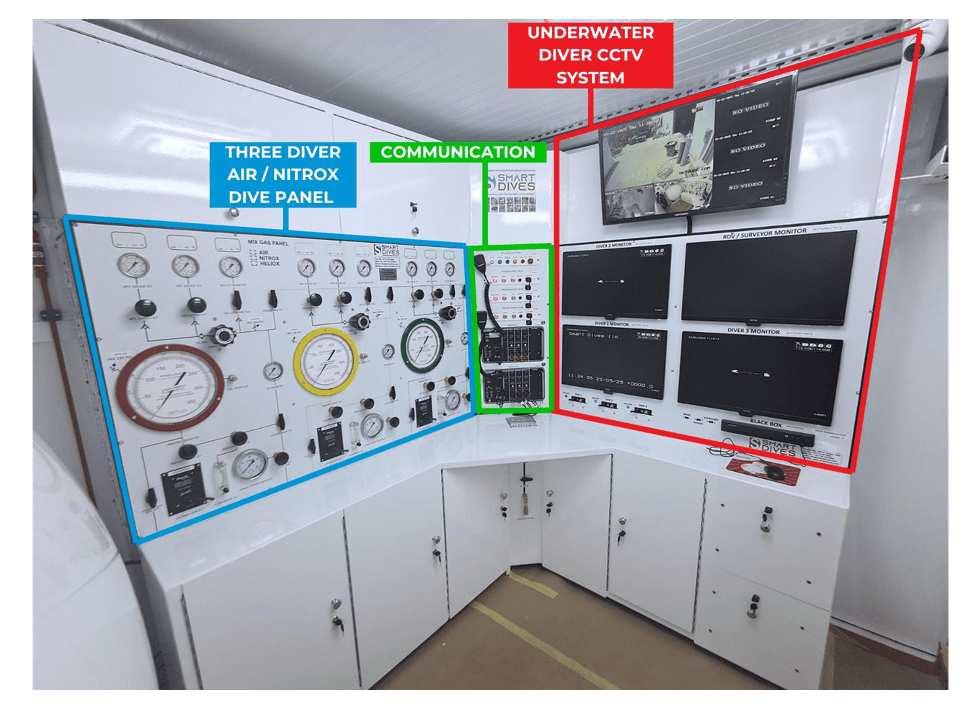

Three-Diver Air / Nitrox Control Panel
- Configured for three-diver Air / Nitrox operations
- Large-format 8.5” depth and pneumo gauges with dual mirror scale in MSW / FSW
- TESCOM / Swagelok HP and LP gas-control components
- Integrated gas analysis arrangement
- AMRON diver communications
- CCTV / DVR diver monitoring and recording system
ABS
Fully ABS Classed System
The entire system—including the decompression chamber, all pipework and tubing, the complete three-diver control panel, and the DNV 2.7-1 offshore container—is fully ABS classed for maximum safety and compliance.
Insulated & Climate-Controlled Container
The container is fully insulated and equipped with Carrier inverter air conditioners (50/60 Hz) that provide both heating and cooling, ensuring stable environmental control in all operating conditions.
ASME-Certified Decompression Chamber
The pressure vessel is designed and manufactured fully in accordance with ASME Section VIII Div. 1 and ASME PVHO-1 requirements. It has been inspected and certified by an ASME-authorized inspector at all required stages of fabrication, welding, and testing, with the final certification issued strictly in line with ASME code compliance.
PED-Compliant & CE-Marked Pressure Vessel
The decompression chamber is built in accordance with the Pressure Equipment Directive (PED) 2014/68/EU for pressure vessels. All required conformity assessments, material verifications, weld inspections, and pressure tests were carried out under the supervision of a Notified Body inspector, attending each critical stage of the fabrication and testing process. Following successful completion of these evaluations, the chamber was issued its CE marking in full compliance with PED requirements.
