Key Specifications

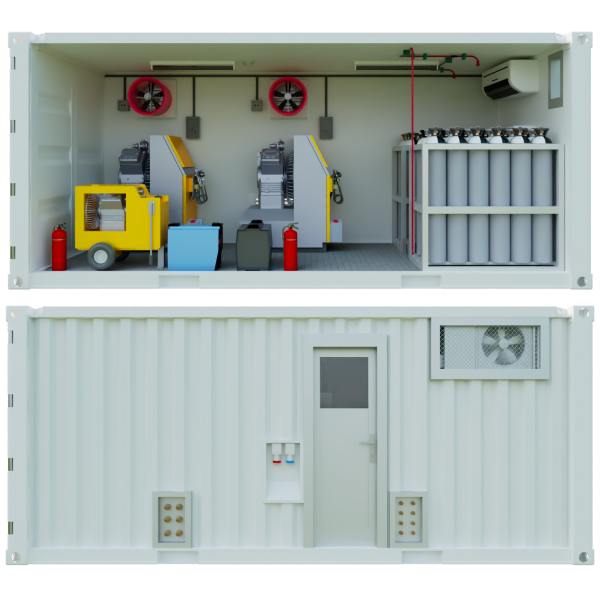

Container
- Container Variations:
- 20 FT DNV Offshore Container W/ Lifting Padeye (DNV, ABS)
- 20 FT Standard ISO Container C/W DNV Type Lifting Padeye (ISO)

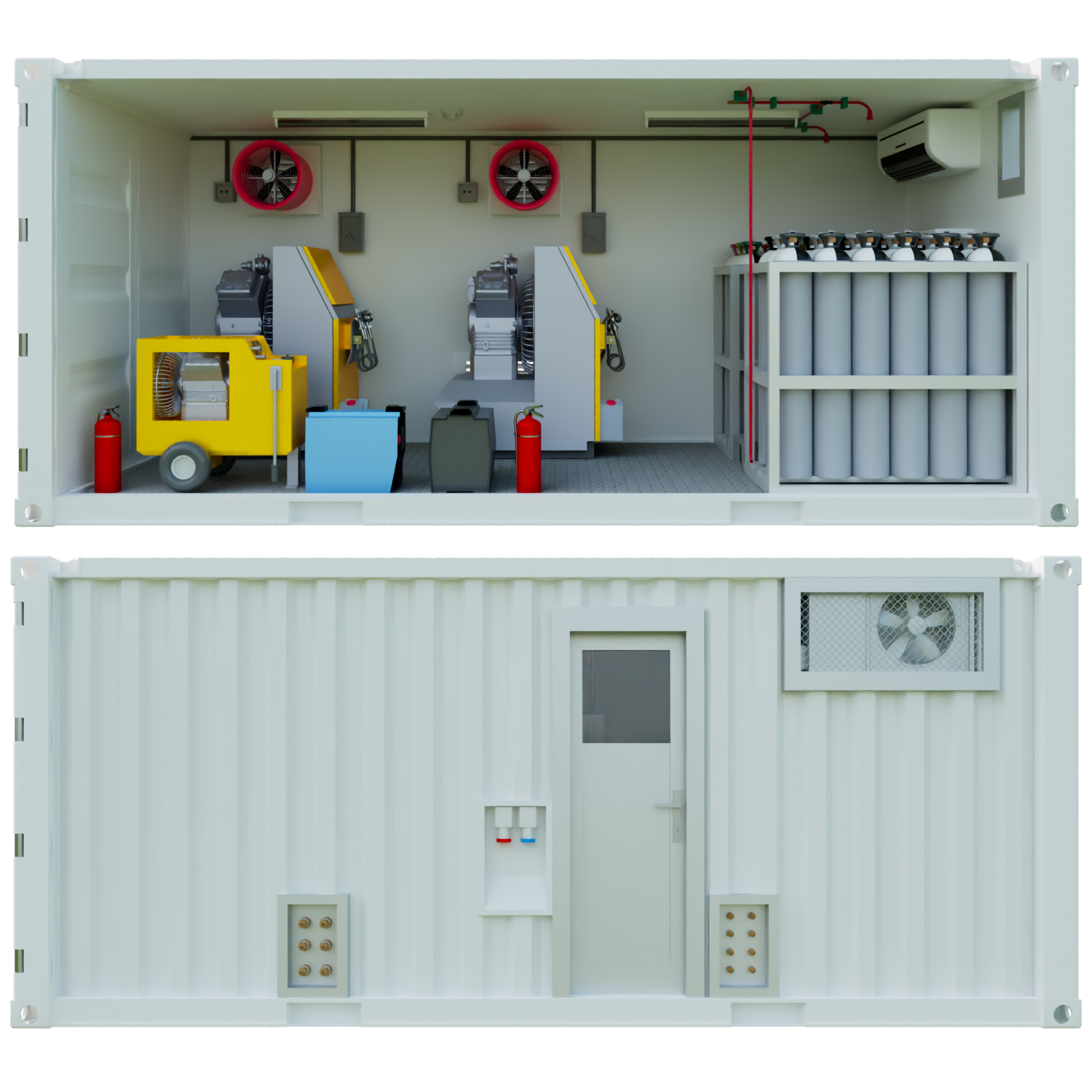

- Integrated high-pressure breathing air package designed for commercial diving and chamber support operations.
Compressor

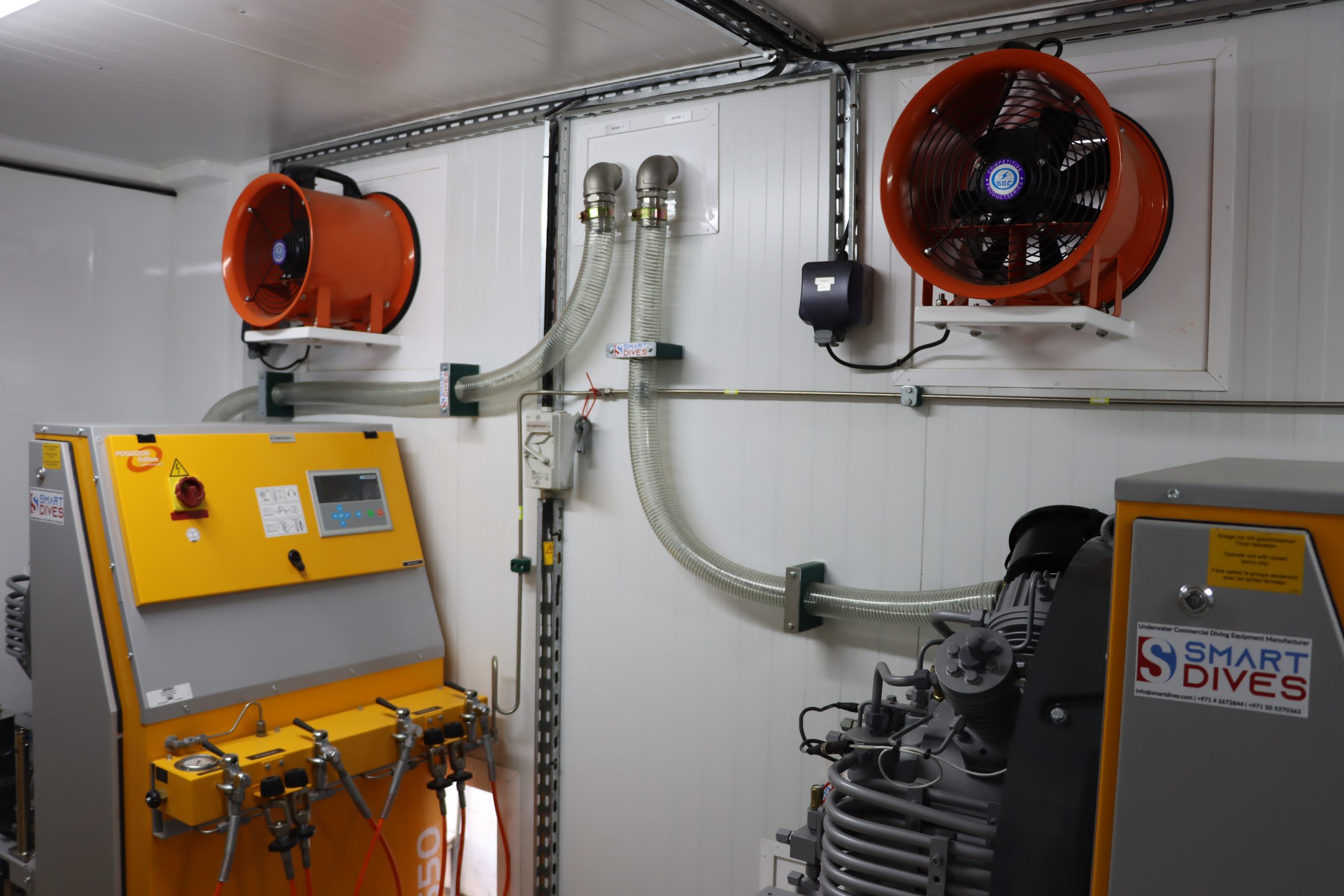

- Equipped with 2 × Bauer PE 550 high-pressure breathing air compressors.
- Compressor configuration allows operation of both compressors simultaneously or independently.
- Compressor charging arrangement allows charging of both built-in air storage banks and external air banks / quads.
Quad

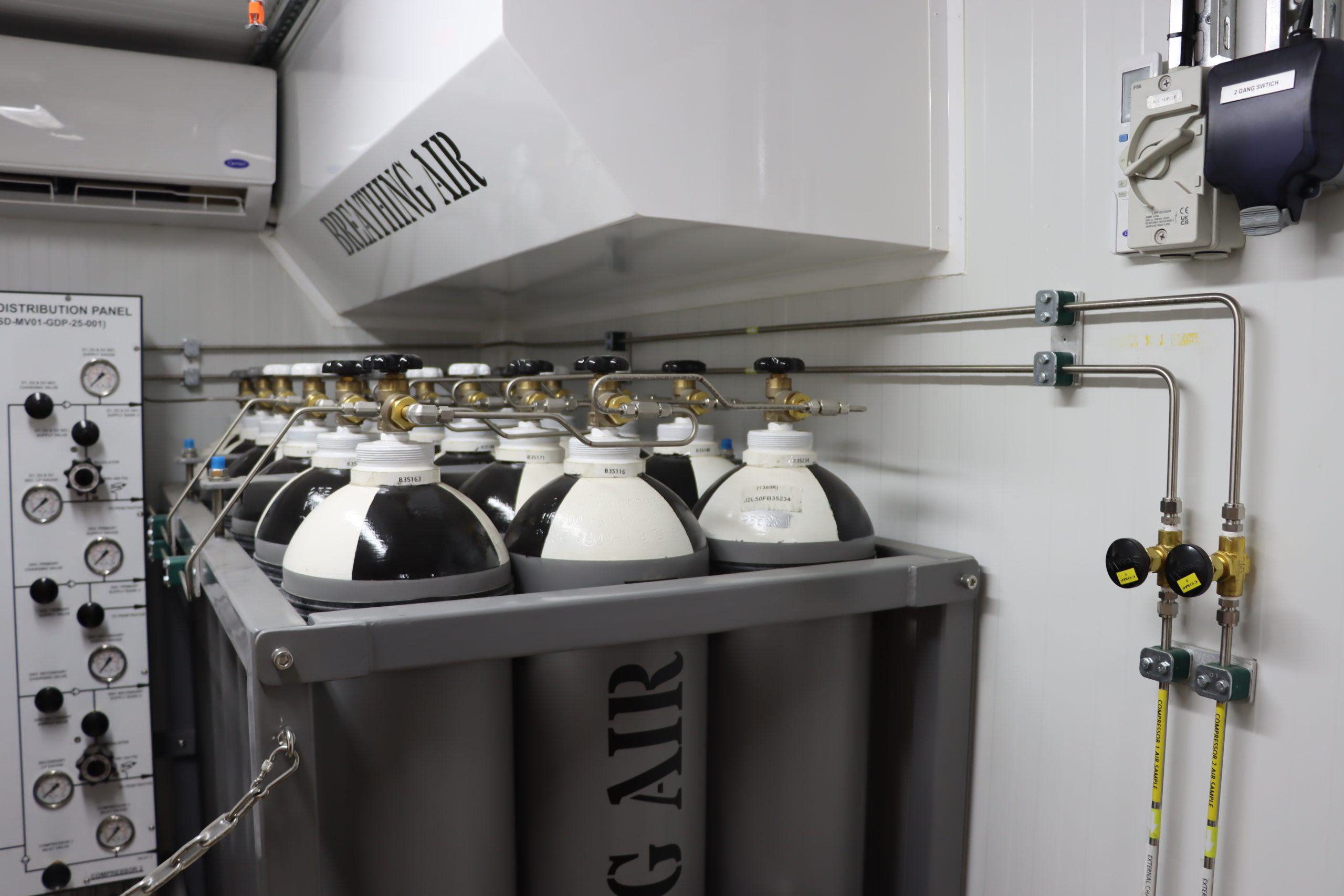

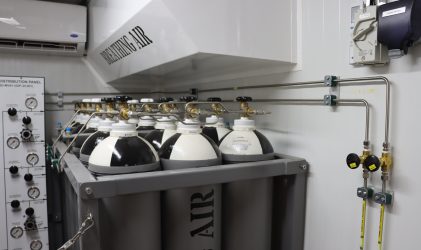

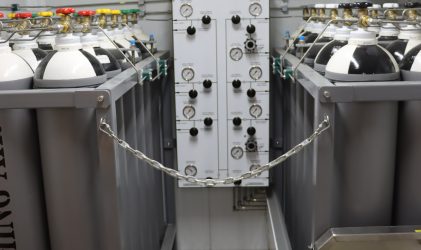

- Built-in air storage rack with 36 × 50L × 200 bar cylinders.
- Cylinder banks configured for:
- Diver 1 independent primary supply
- Diver 2 independent primary supply
- Diver 3 independent primary supply
- Common secondary / backup diver supply
- Chamber blowdown primary supply
- Chamber blowdown secondary / backup supply

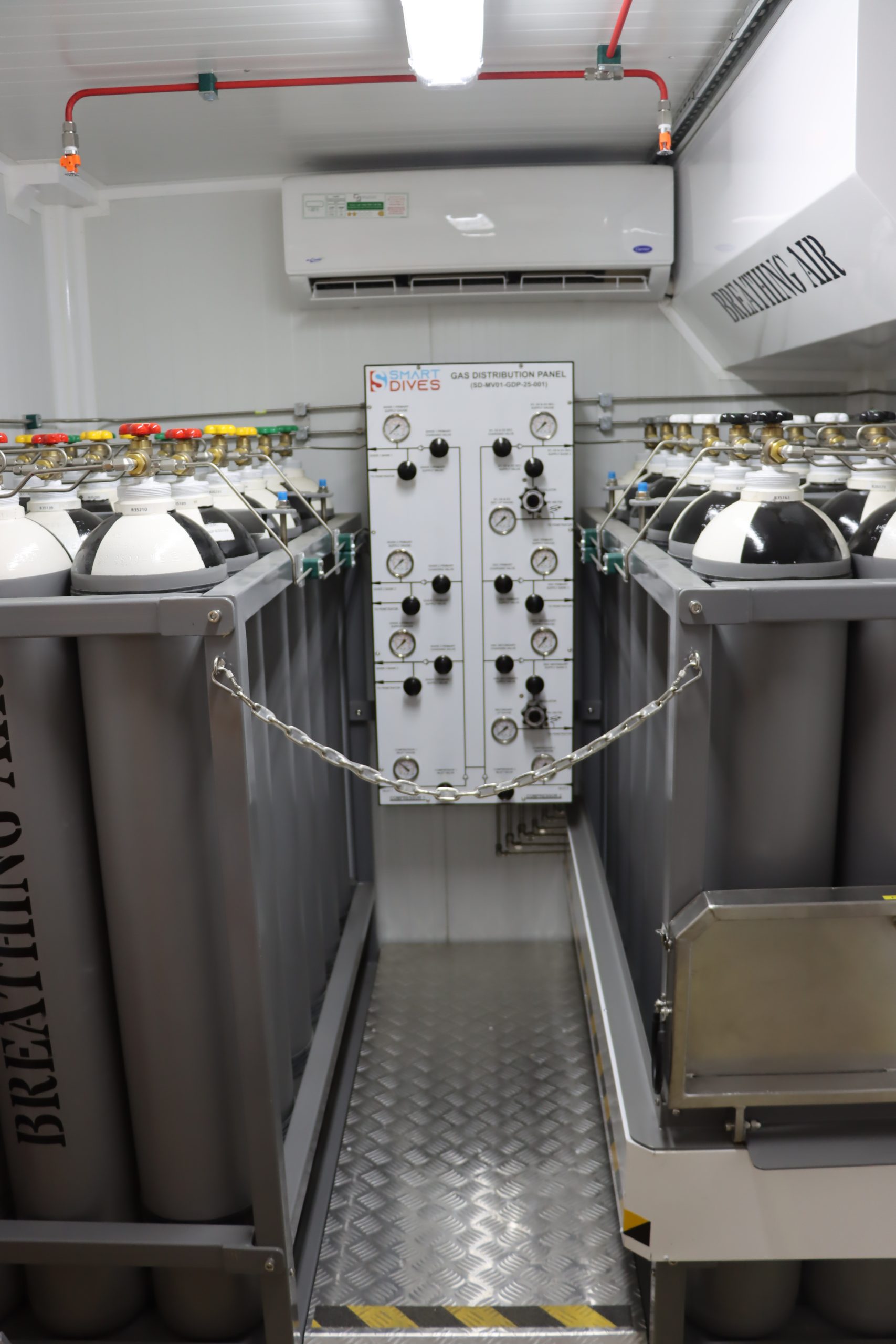

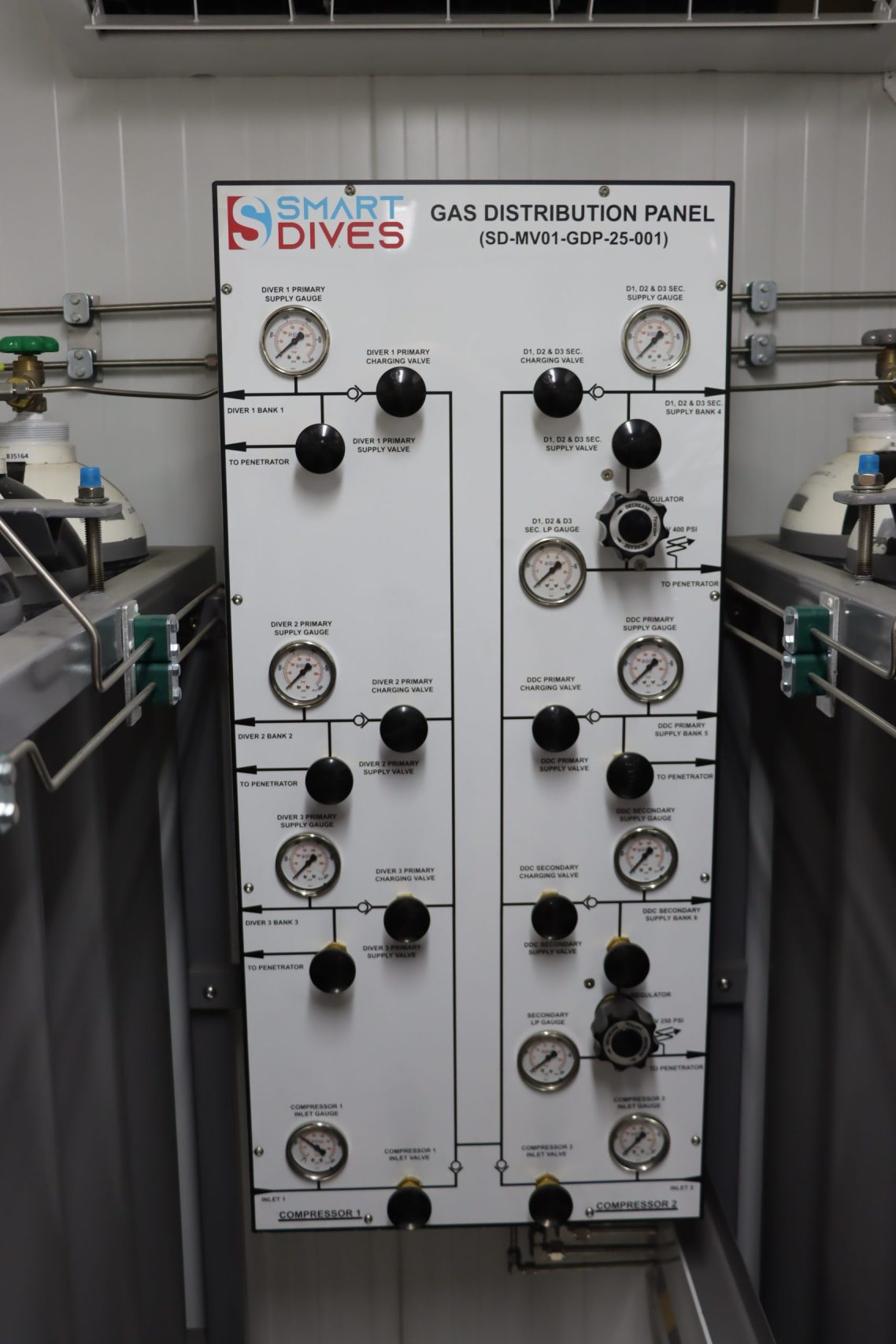

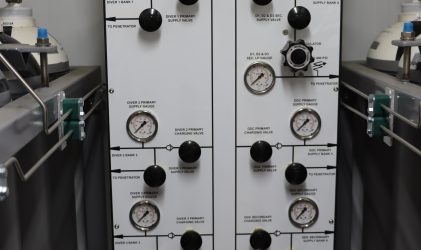

- Dedicated air management panel for controlled distribution of breathing air to the dive control system and decompression chamber.
- Segregated cylinder bank arrangement designed to prevent cross-transfer between individual air banks.
- Semi-automatic compressor charging arrangement with pressure-based start / stop functionality.
- Designed to support IMCA D 023 compliant diver air supply management.

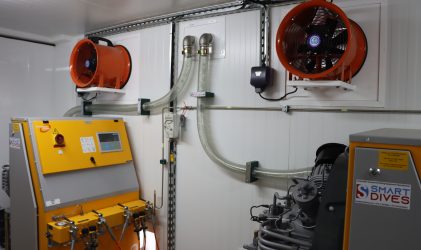

- Fitted with fresh air intake louvers and extractor fans for internal ventilation and compressor cooling support.
Electrical and Fire Prevention
- Provided with PU insulation and air-conditioning for improved internal environmental control.
- Electrical supply through 380 / 440V, 3-phase power inlet, with transformer arrangement for single-phase auxiliary equipment.
- Integrated fire alarm system with detectors, alarm panel, beacon lights, and provision for integration with the dive control fire alarm system.
Optional

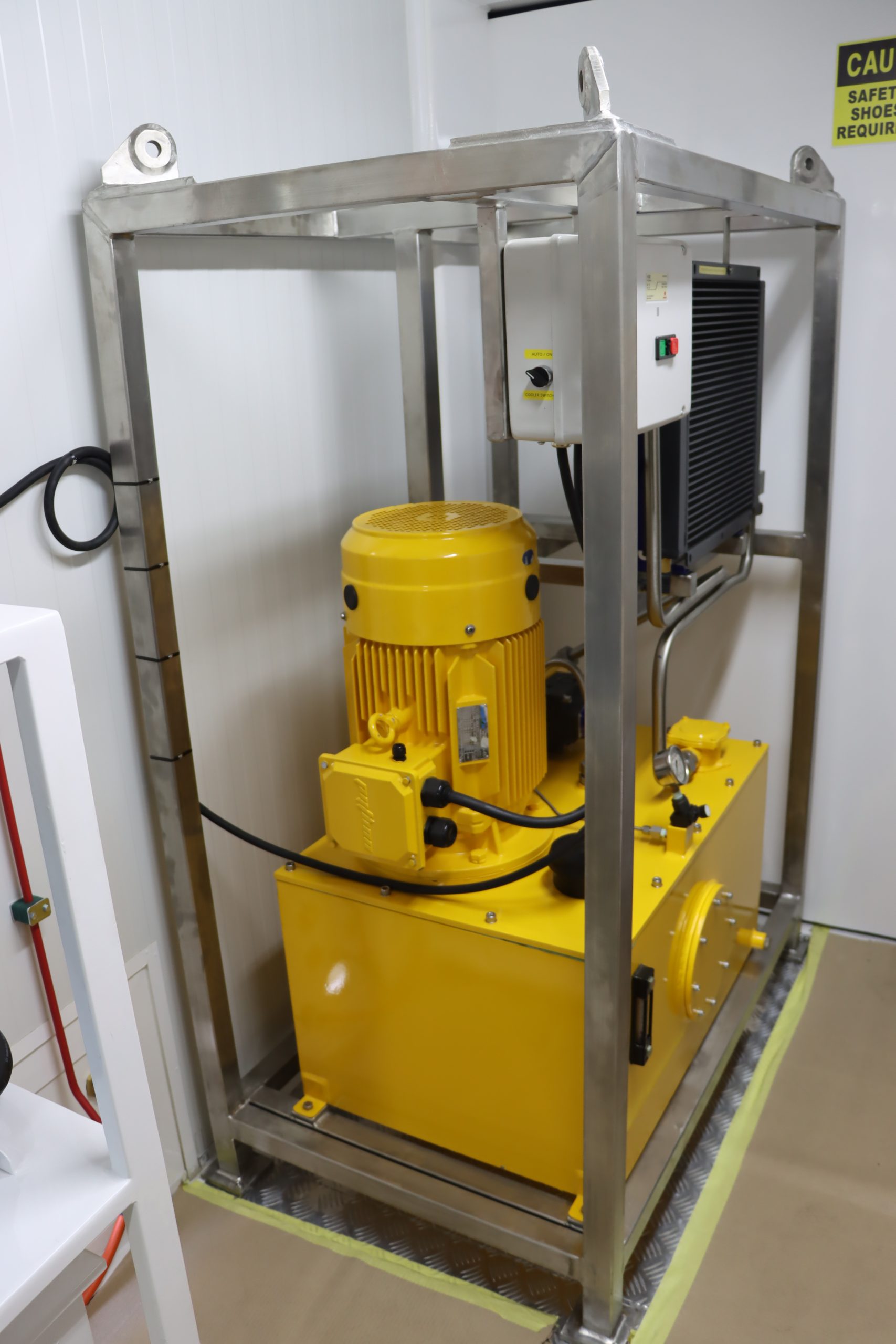

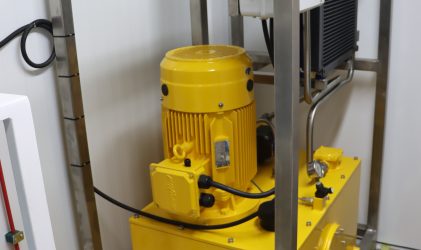

- Optional integration of hydraulic power pack for underwater hydraulic tools.

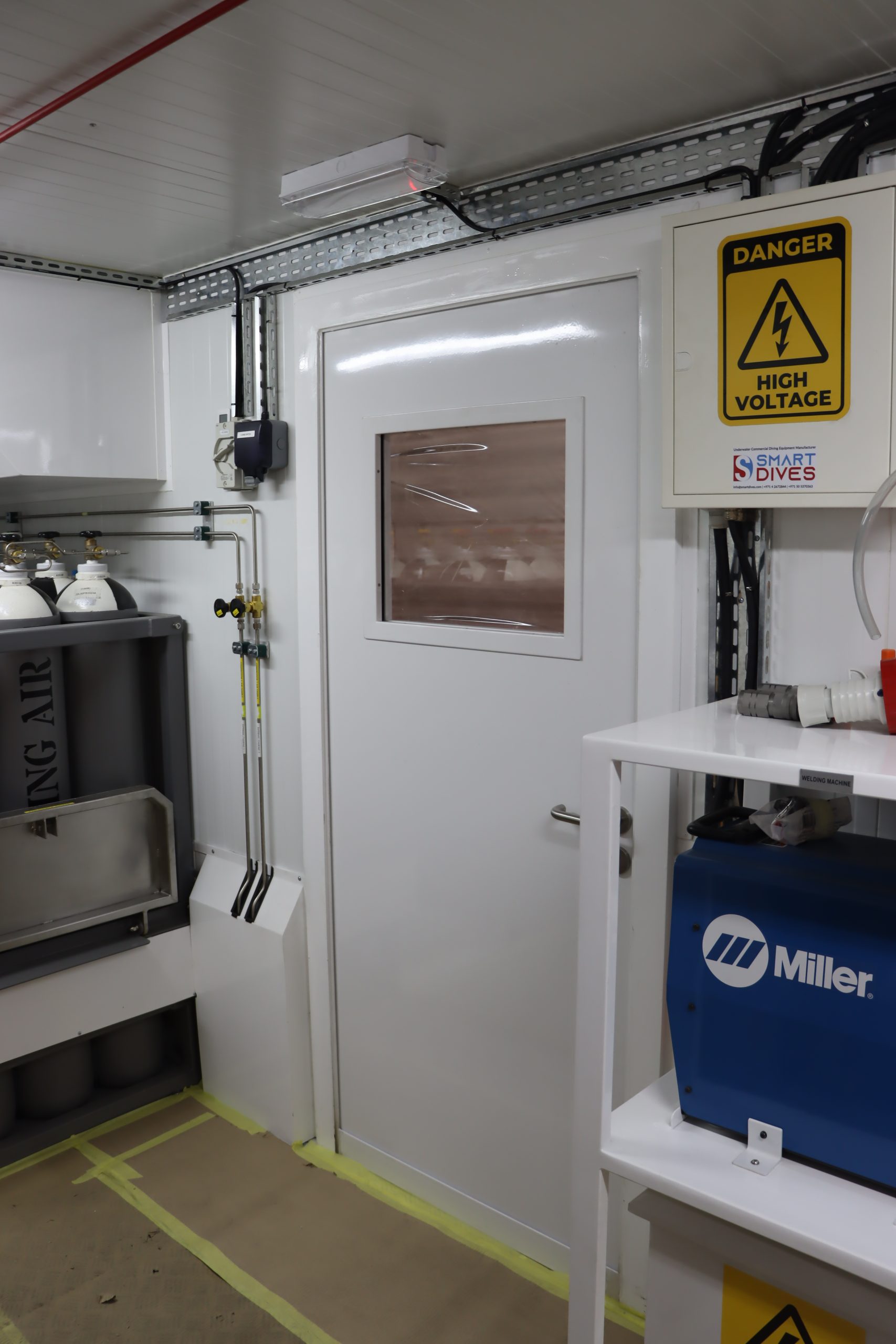

- Optional integration of DC welding rectifiers for underwater cutting and welding support.
