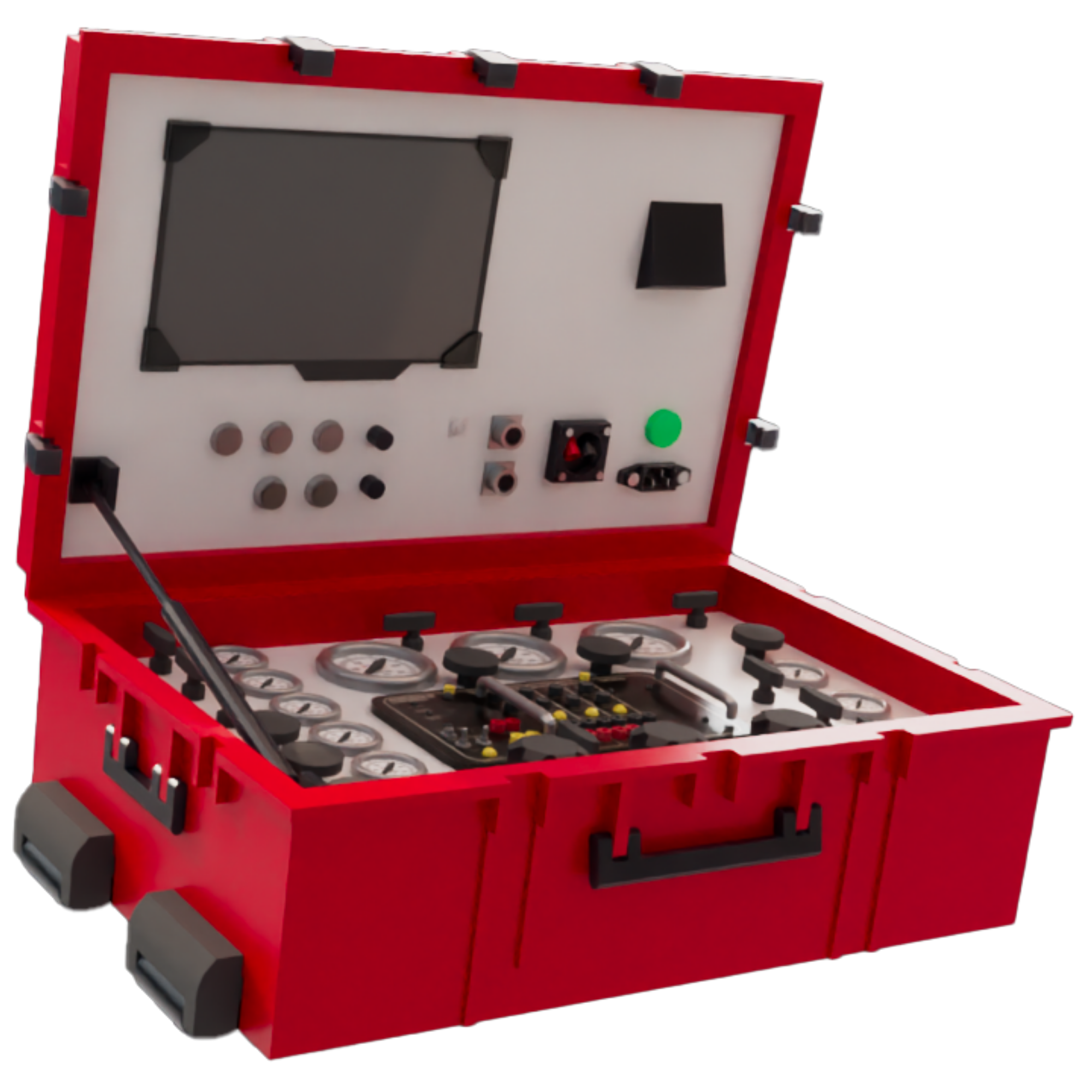

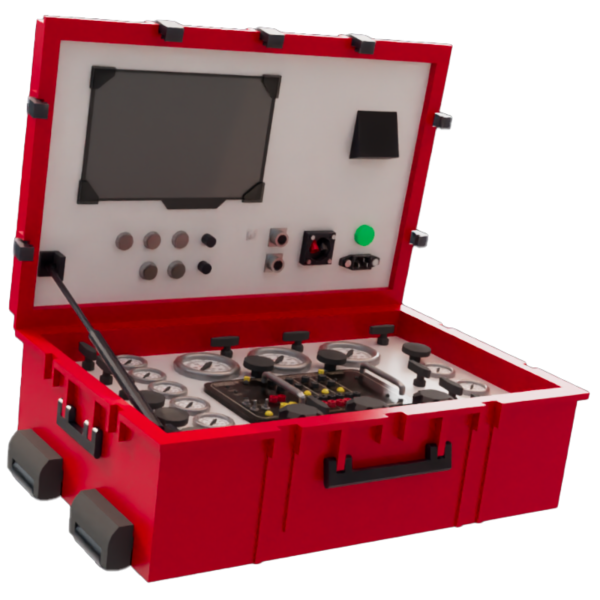

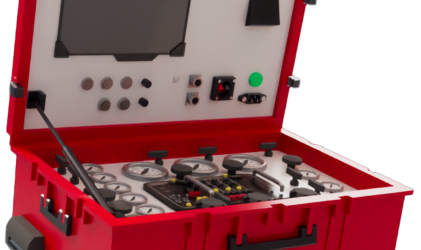

Portable Three Diver Control Panel

The SmartDives 3 Diver Panel is a portable, fully integrated control system designed to give supervisors safe, clear, and reliable command over three surface-supplied divers. Built inside a rugged Pelican 1650 case, the unit is watertight, rustproof, dustproof, and engineered for easy mobilisation across vessels, dive sites, and offshore environments.

The panel features dedicated HP and LP supply lines for each diver, precise 70-metre depth (pneumo) gauges, and a three-diver AMRON communication system for continuous voice clarity. A 15.6-inch LED monitor with DVR provides real-time video and recording, allowing supervisors full visibility during all phases of the dive.

IMCA-compliant design for safe, controlled three-diver operations.

Key Specifications

Portable three-diver control panel designed for surface-supplied commercial diving operations.

Supports three divers, with dedicated supply control and depth monitoring for each diver.
Housed in a rugged Pelican 1650 case, designed to be watertight, dustproof, rustproof, and suitable for field deployment.
Compact and portable design, suitable for vessel, quayside, yard, and site-based diving operations.
Panel is configured to receive and manage:
- 3 × HP primary air supplies, one dedicated supply for each diver.
- 3 × LP secondary / backup air supplies, one dedicated supply for each diver.
Configured with 3 independent Tescom regulators, with one dedicated Tescom regulator provided for each diver.
Integrated 4” pneumo depth gauges with dual dial mirror scale, rated up to 70 MSW / approximately 230 FSW, for diver depth monitoring.
Supplied with Amron AMCOM III 2830A-11 three-diver communicator, providing clear hardwired communication between the diving supervisor and divers.
Optional diver CCTV monitoring system available with:
- Single-diver monitoring option
- Two-diver monitoring option
Optional CCTV monitoring package can include 15.6” LED display and 2-channel HD mini DVR for live viewing and recording of diver video feed.
Power supply arrangement suitable for 220V / 50 Hz mains power, with 12V / 70Ah battery backup.
Designed for quick setup, easy handling, and practical use in mobile diving spreads.
Approximate weight: 50 kg, depending on final configuration and optional monitoring package.
