Portable Two Diver Control Panel

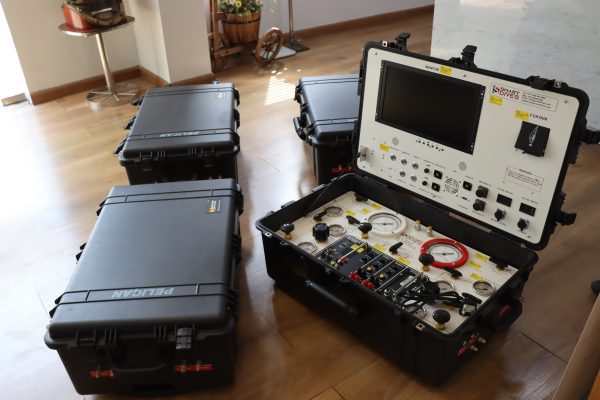

The SmartDives 2 Diver Panel is a compact, portable control solution designed to give supervisors clear, reliable command over two surface-supplied divers. Built inside a rugged Pelican 1650 case, the unit is watertight, rustproof, dustproof, and engineered for easy mobilisation across vessels, dive sites, and onshore locations.

The panel integrates HP and LP supply for each diver, dedicated pneumo gauges for accurate depth monitoring, a two-diver AMRON communication system, and a 15.6-inch HD monitor with DVR for video recording and live visibility. Its clean internal layout ensures straightforward operation, allowing supervisors to manage air supply, depth, comms, and video from one organised and travel-ready package.

IMCA-compliant design for safe, controlled two-diver operations.

Key Specifications

Portable two-diver control panel designed for surface-supplied commercial diving operations.

Supports two divers, with dedicated supply control and depth monitoring for each diver.
Housed in a rugged Pelican 1650 case, designed to be watertight, rustproof, dustproof, and suitable for demanding field deployment.
Compact and portable design, suitable for vessel, quayside, yard, and site-based diving operations.
Panel is configured to receive and manage:
- 2 × HP primary air supplies, one dedicated supply for each diver.
- 2 × LP secondary / backup air supplies, one dedicated supply for each diver.
Configured with 2 independent Tescom regulators, with one dedicated Tescom regulator provided for each diver.
Tescom regulator arrangement rated for 6000 psi inlet pressure with 0–400 psi adjustable outlet pressure.
Integrated 4.5” pneumo depth gauges with dual dial mirror scale, rated up to 70 MSW / approximately 230 FSW, for diver depth monitoring.
Supplied with Amron AMCOM II 2825A-11 two-diver communicator, providing clear hardwired communication between the diving supervisor and divers.
Optional diver CCTV monitoring system available with:
- Single-diver monitoring option
- Two-diver monitoring option
Optional CCTV monitoring package can include 15.6” TFT LED display and 2-channel HD mini DVR for live viewing and recording of diver video feed.
Power supply arrangement suitable for 220V / 50 Hz mains power.
Designed for quick setup, easy handling, and practical use in mobile diving spreads.
Approximate weight: 45 kg, depending on final configuration and optional monitoring package.
