Three Diver Scuba Replacement Package (SRP)

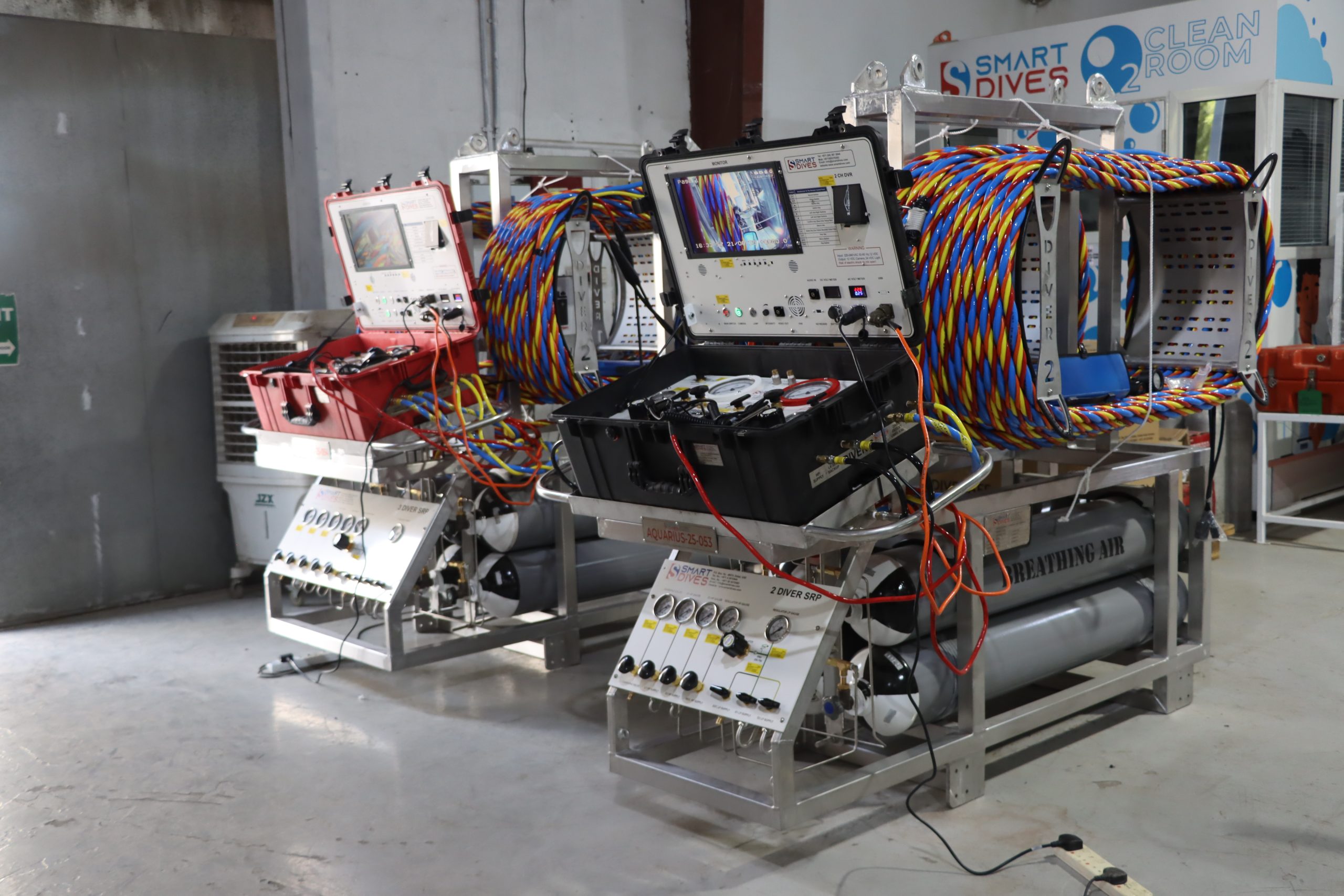

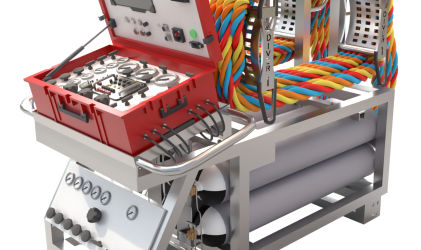

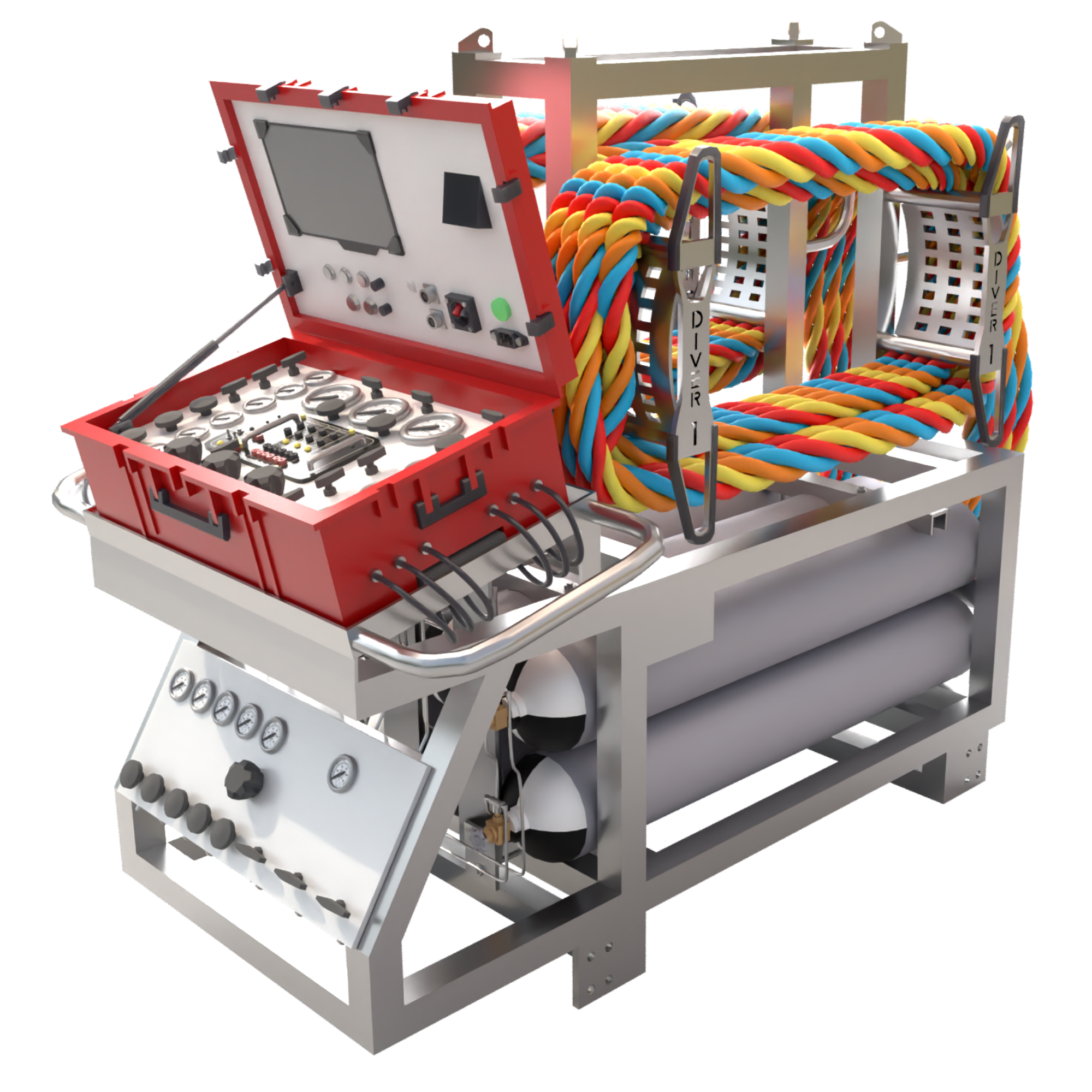

The SmartDives 3-Diver SRP is a fully integrated, plug-and-play surface-supplied air system designed for teams that want a compact, organised, and ready-to-deploy solution. Built as one complete package, it brings together a three-diver control panel, air storage, umbilicals, communications, CCTV, and recording into a streamlined stainless-steel frame that is easy to mobilise and operate in the field.

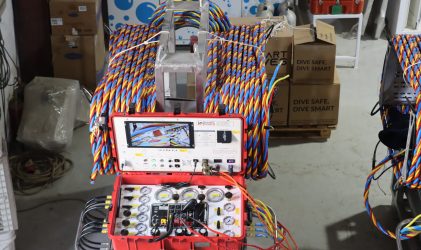

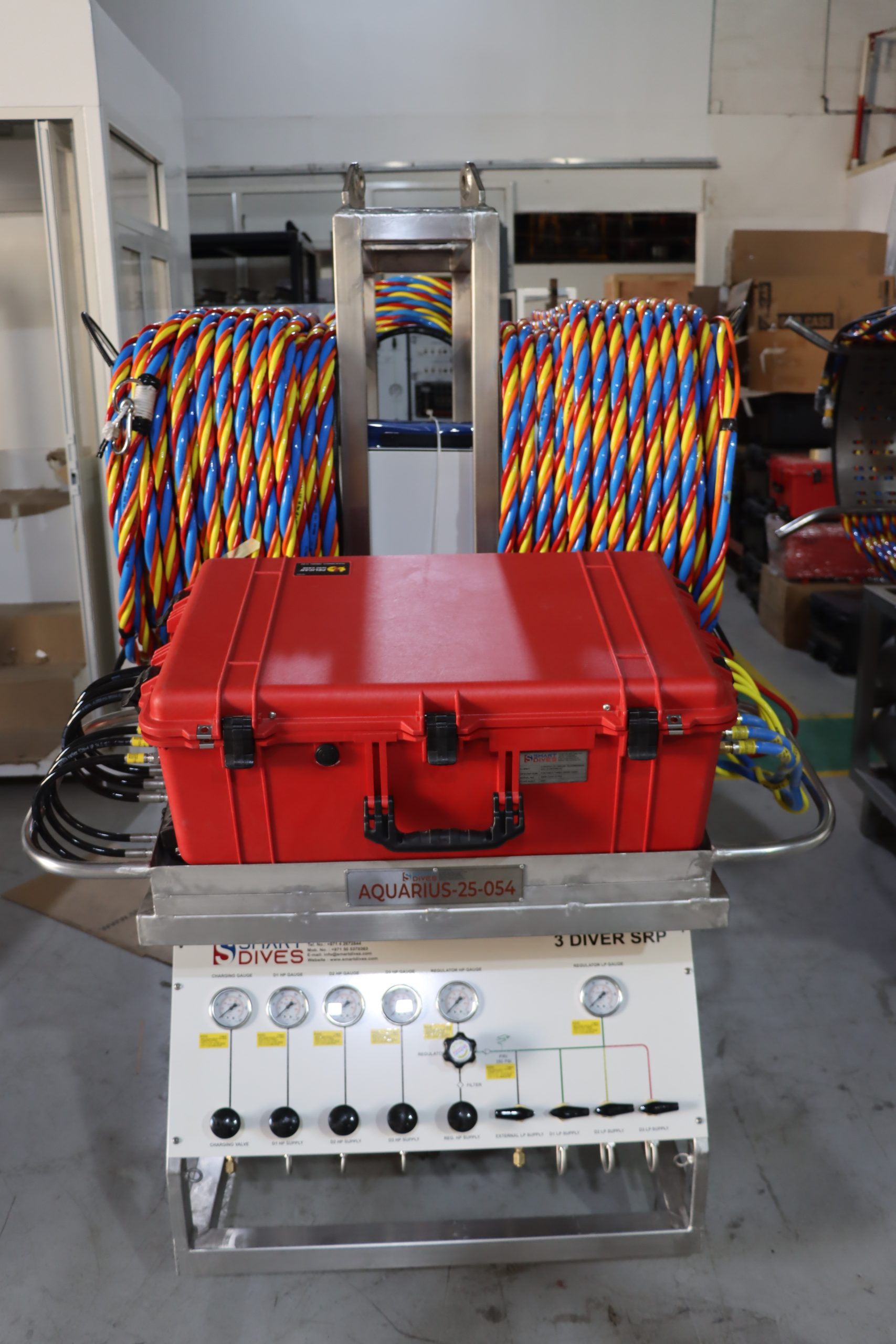

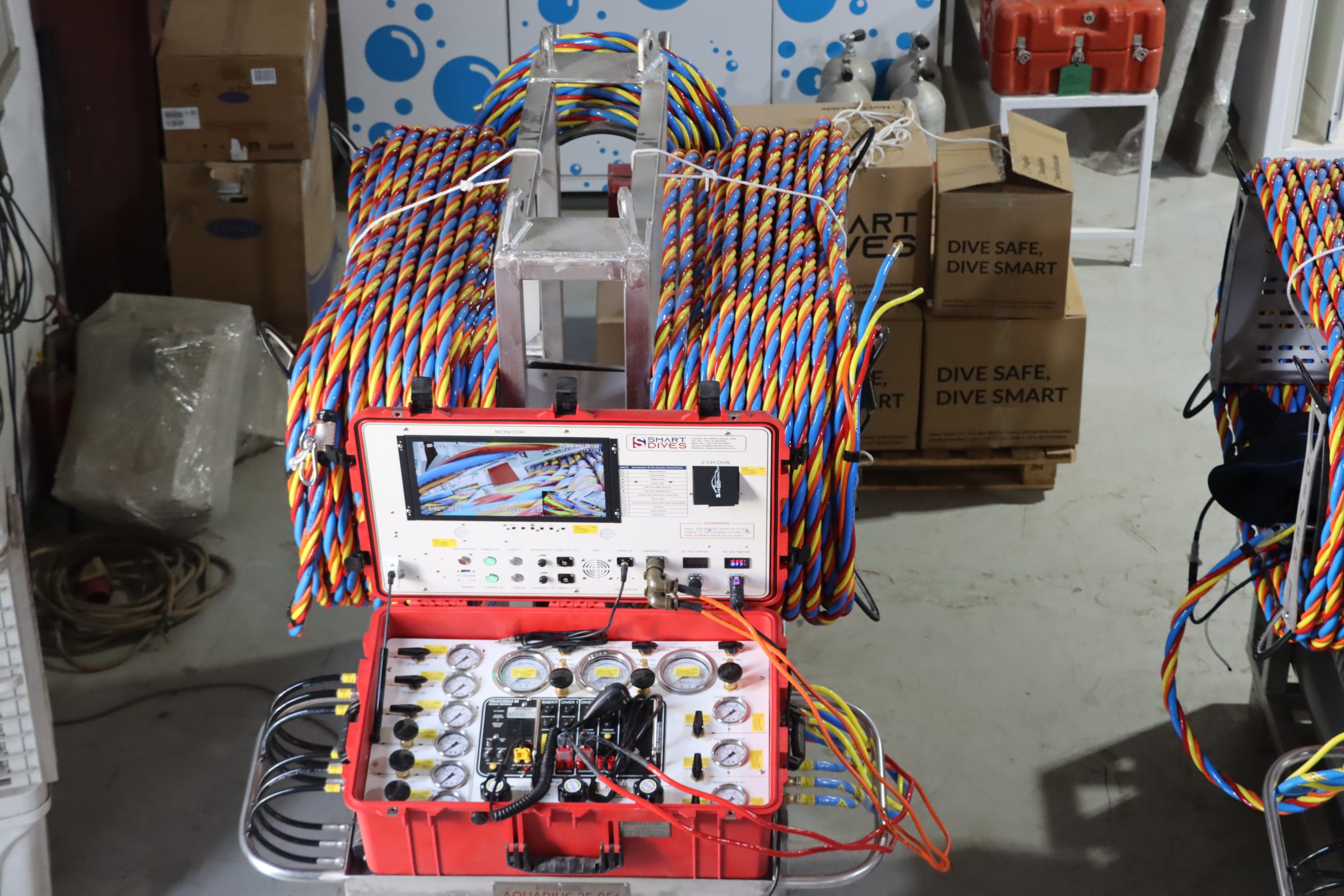

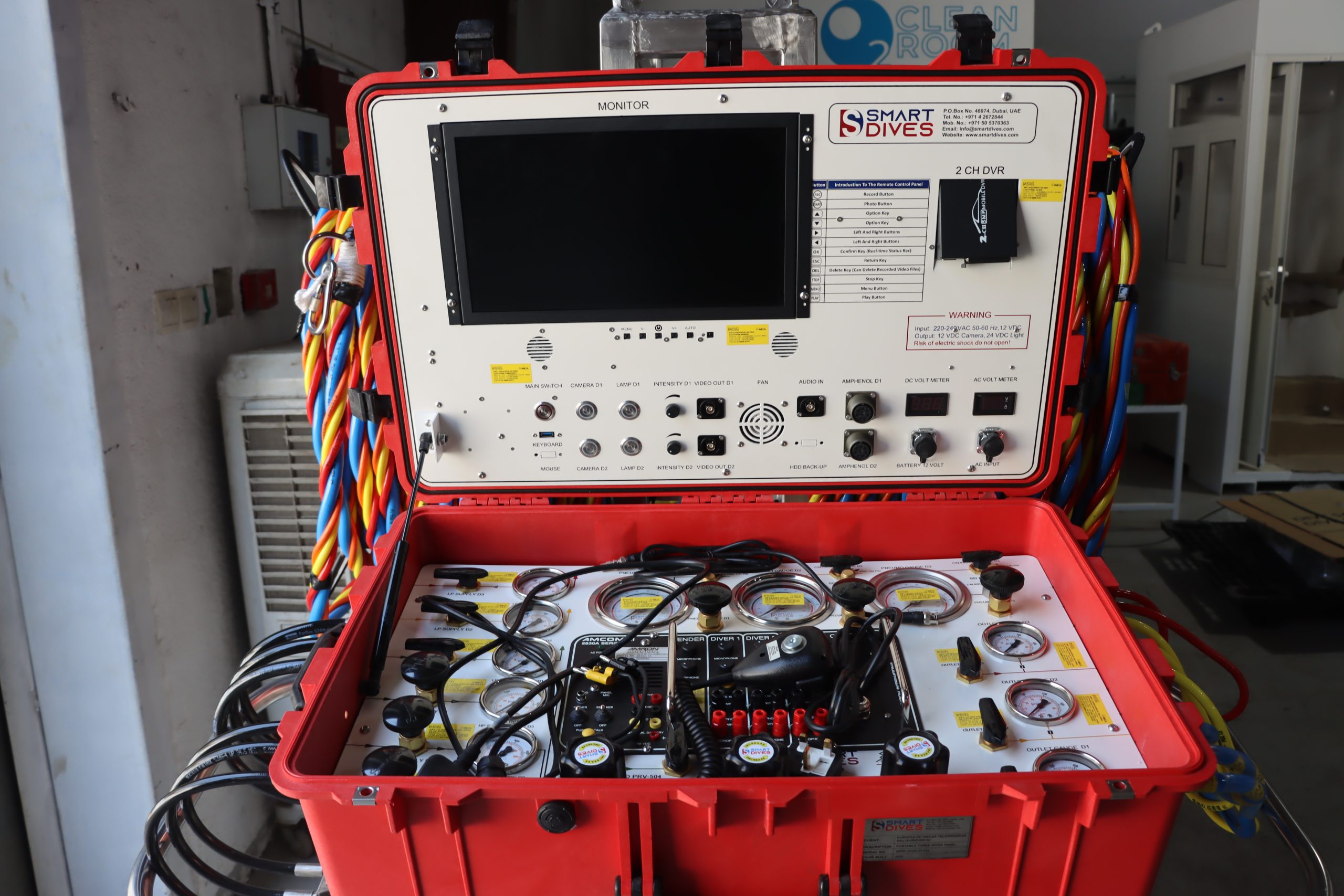

The system features a dedicated three-diver panel housed in a rugged Pelican 1650 case, ensuring protection and reliability in harsh environments. Each diver benefits from their own HP/LP supply, dedicated depth gauges, communications, and video feed, giving supervisors clear oversight and confidence throughout the operation.

With six built-in 50-litre cylinders, organised umbilical storage, and clean cable routing, the 3-Diver SRP offers excellent ergonomics while maintaining a small footprint. Designed and assembled in accordance with IMCA D040 (Design) and maintained as per IMCA D018, it reflects SmartDives’ practical, safety-first engineering approach: robust, mobile, and ready when you are.

Key Specifications

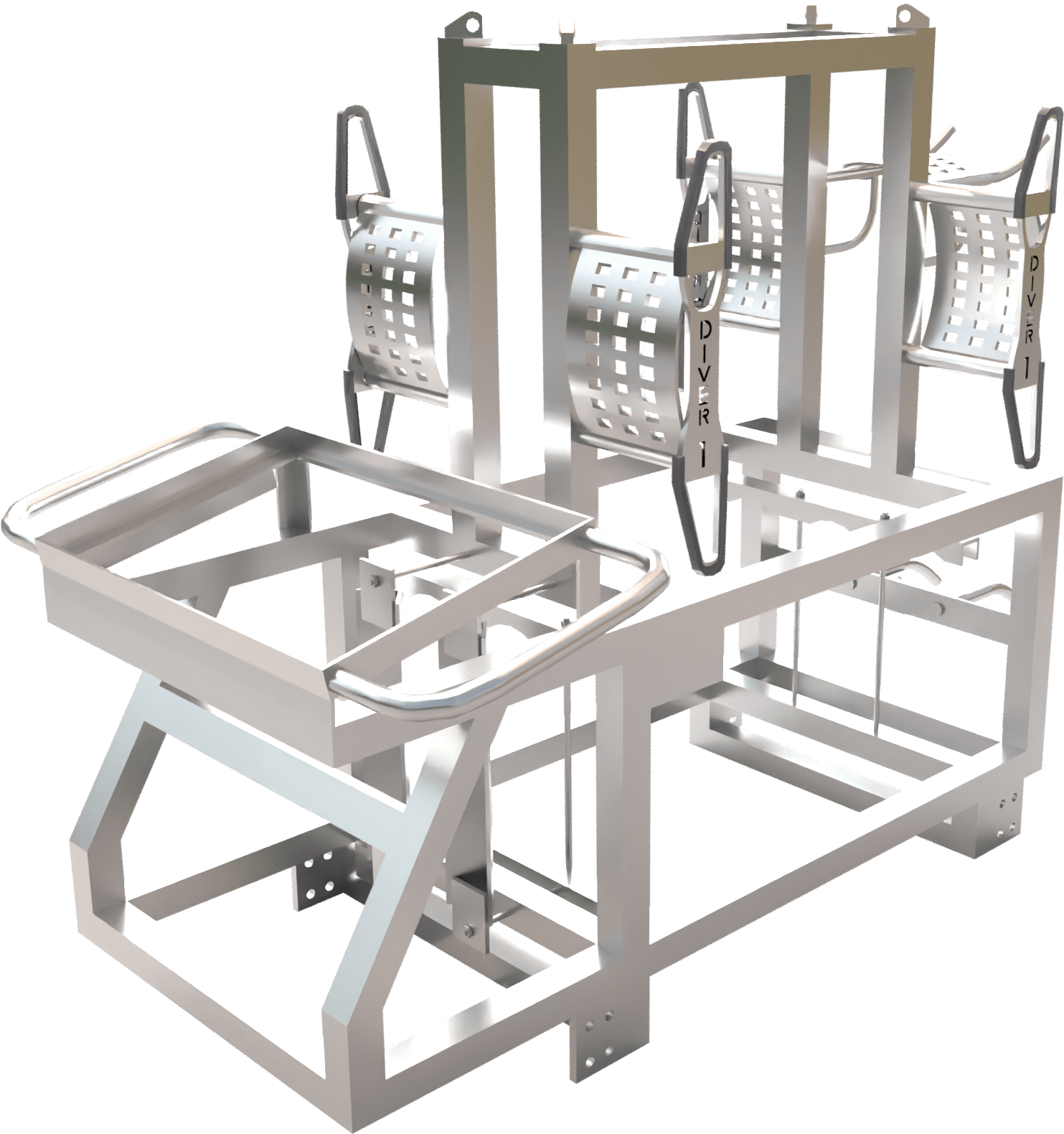

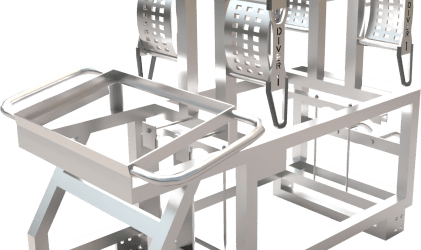

Frame:
- Compact 316 Stainless-Steel Skid
- 2380mm (L) x 1370mm (W) x 1900mm (H)

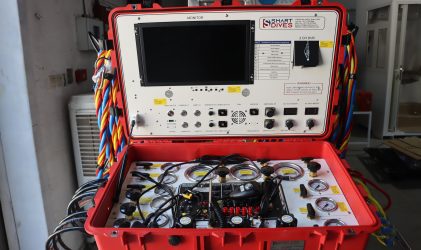

Panel:

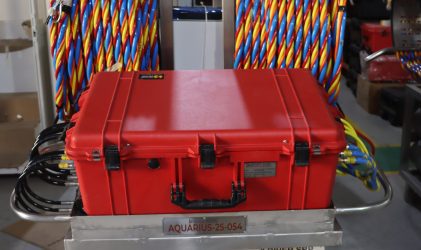

- Housing: Pelican Case 1650 (80.24 x 51.99 x 31.62 cm)

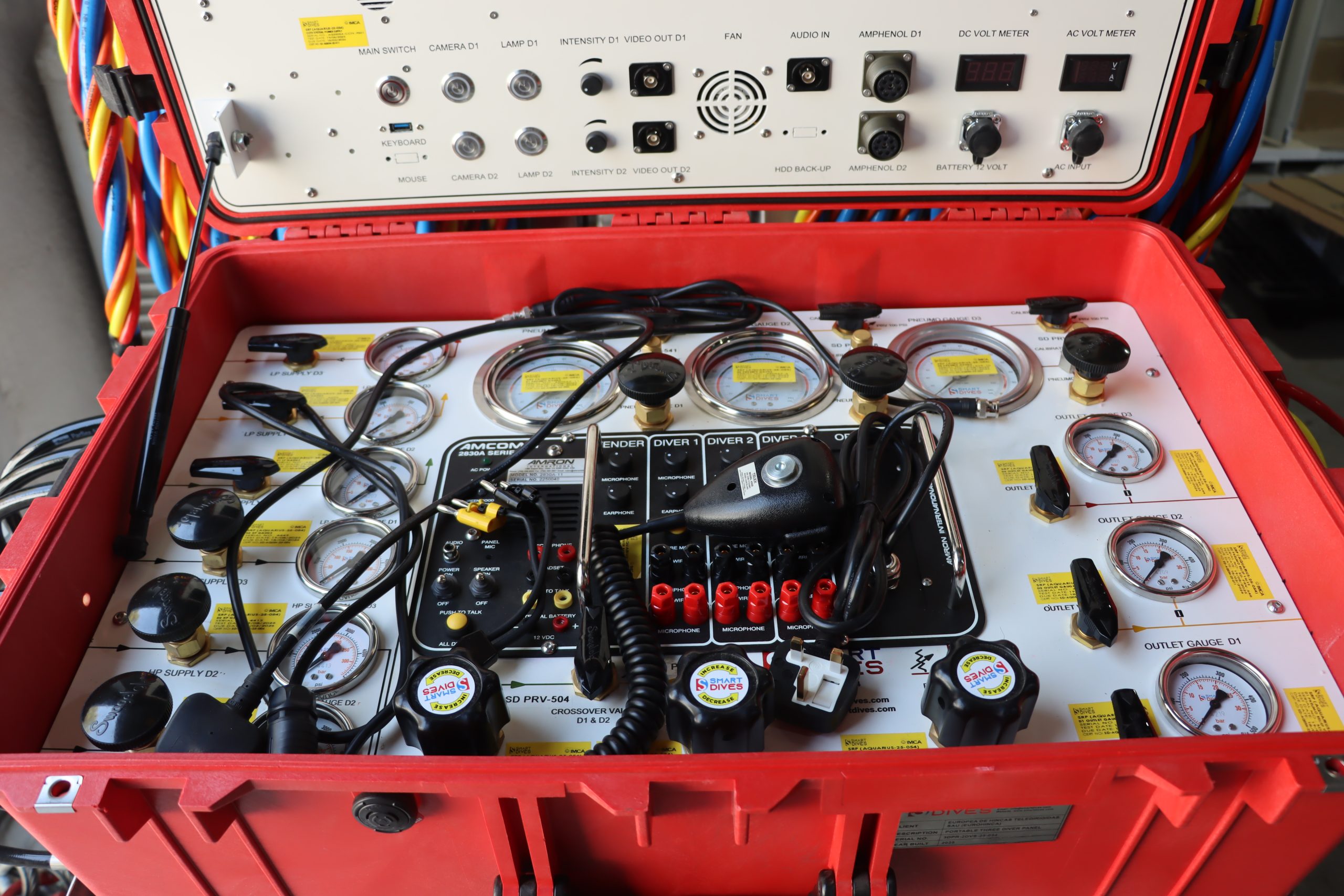

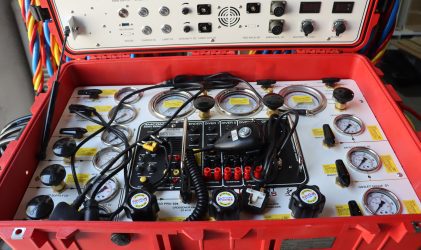

- Control: Integrated Three-Diver Panel
- Communications: 3 Diver AMRON Radio
- Monitoring: 15.5” CCTV with Recording

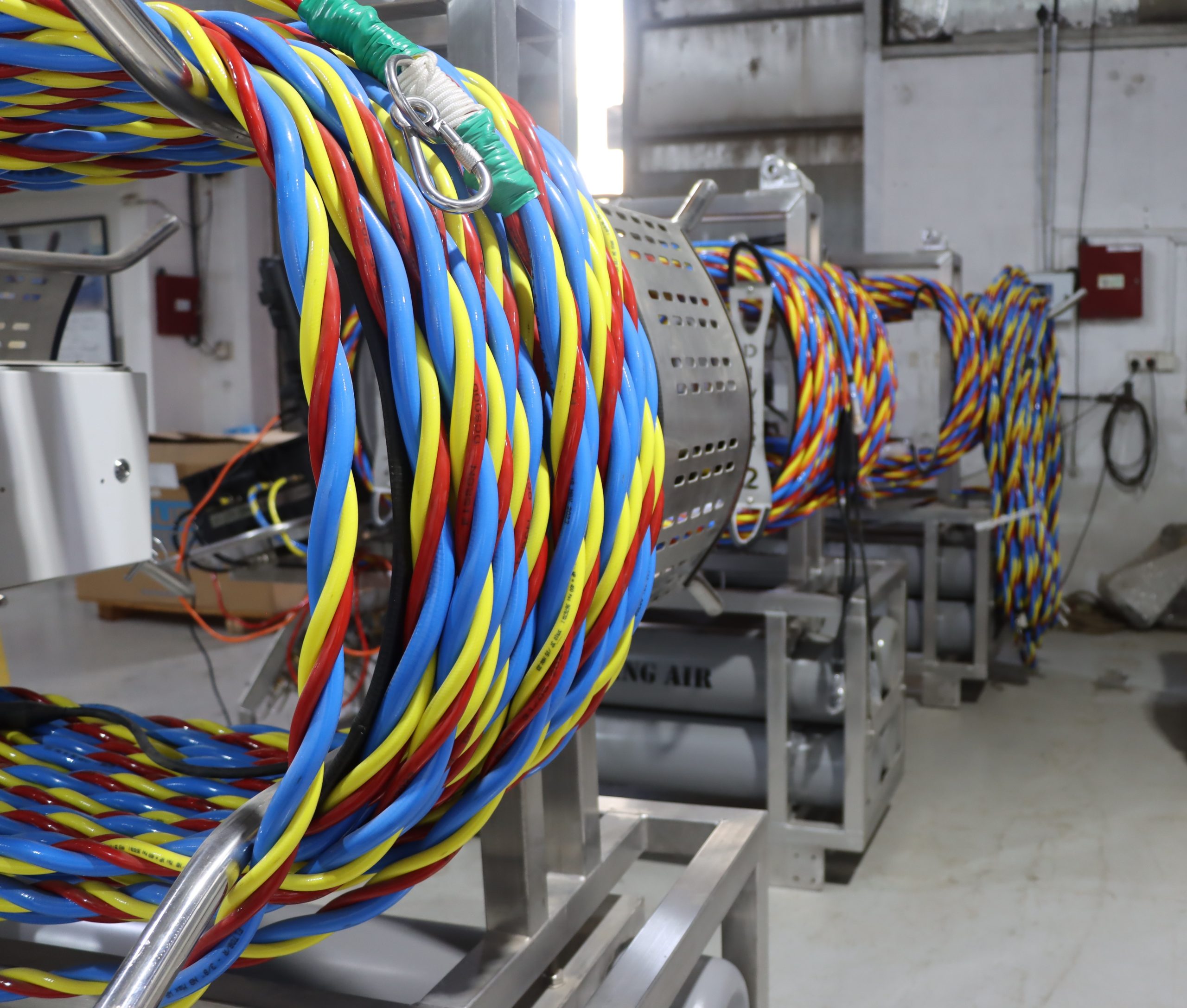

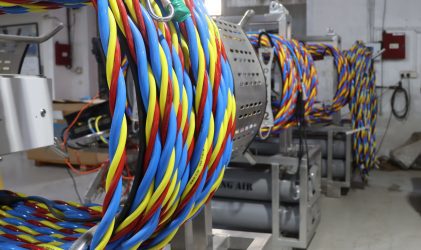

Umbilicals
- 3 or 4 core (4 core includes Underwater Camera & Light Cable)
- Length: 100 – 150 m (as per requirement)
Weight Details
- TARE WEIGHT: 150kg
- PAYLOAD: 600kg
- MAX. GROSS WEIGHT: 750 kg

Compliance & Certification

Aquarius 3 Diver Surface-Supplied Portable Diving System is IMCA Compliant mobile/portable scuba replacement spread. Assembled
in accordance with IMCA D 040 DESIGN and maintained according to IMCA D018 for the Initial and Periodic Examination, Testing and
Certification of Diving Plant and Equipment
